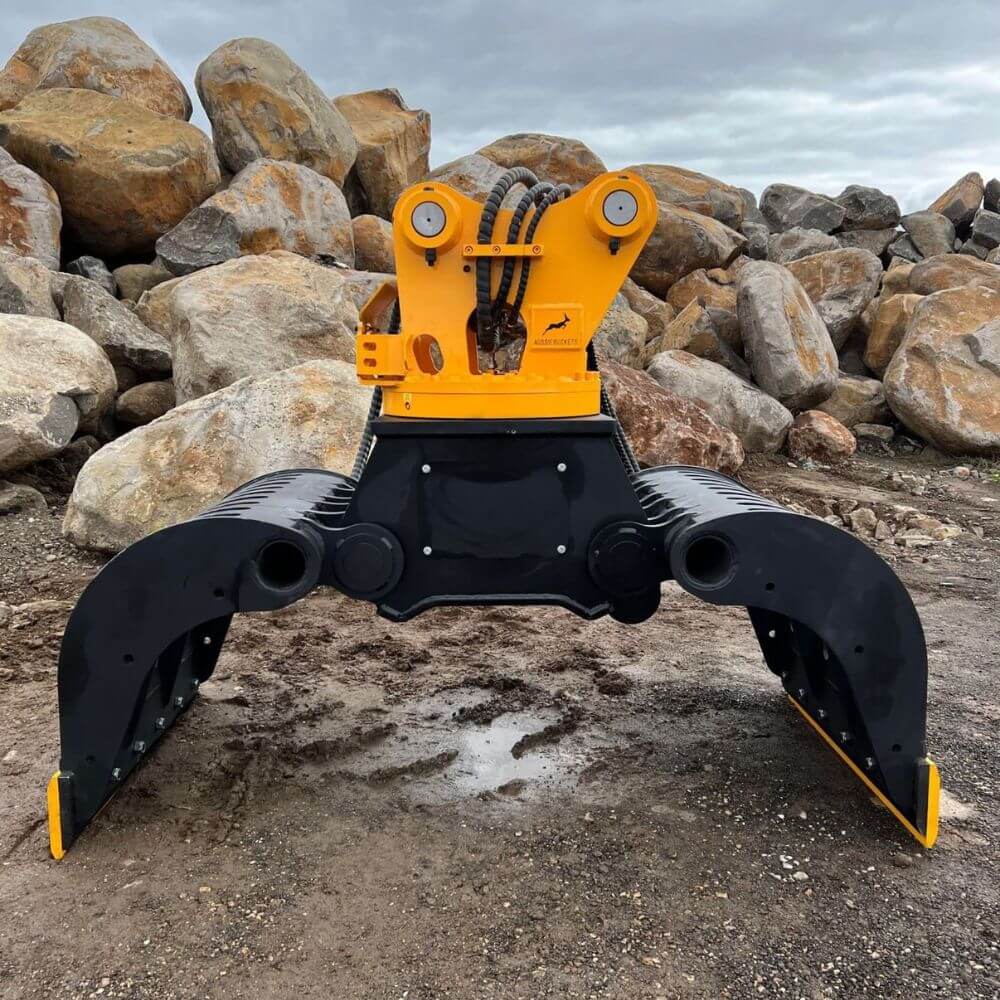

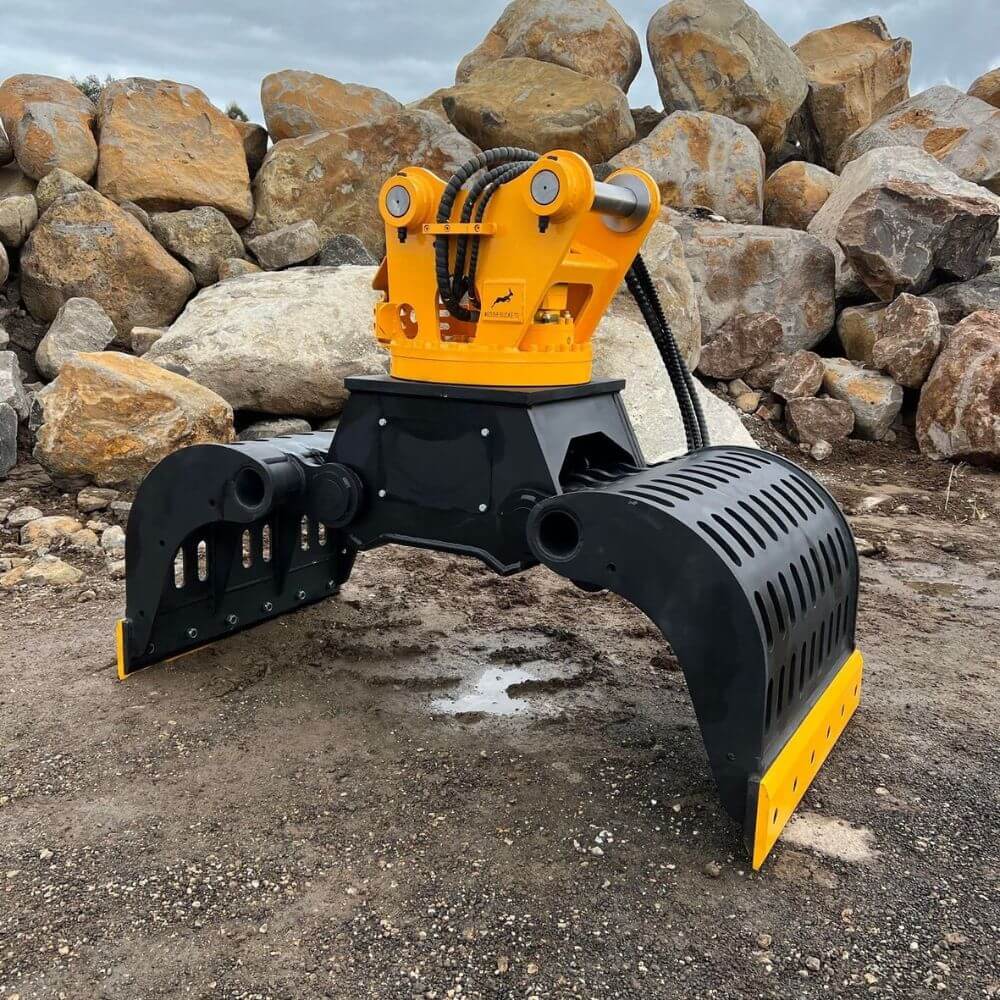

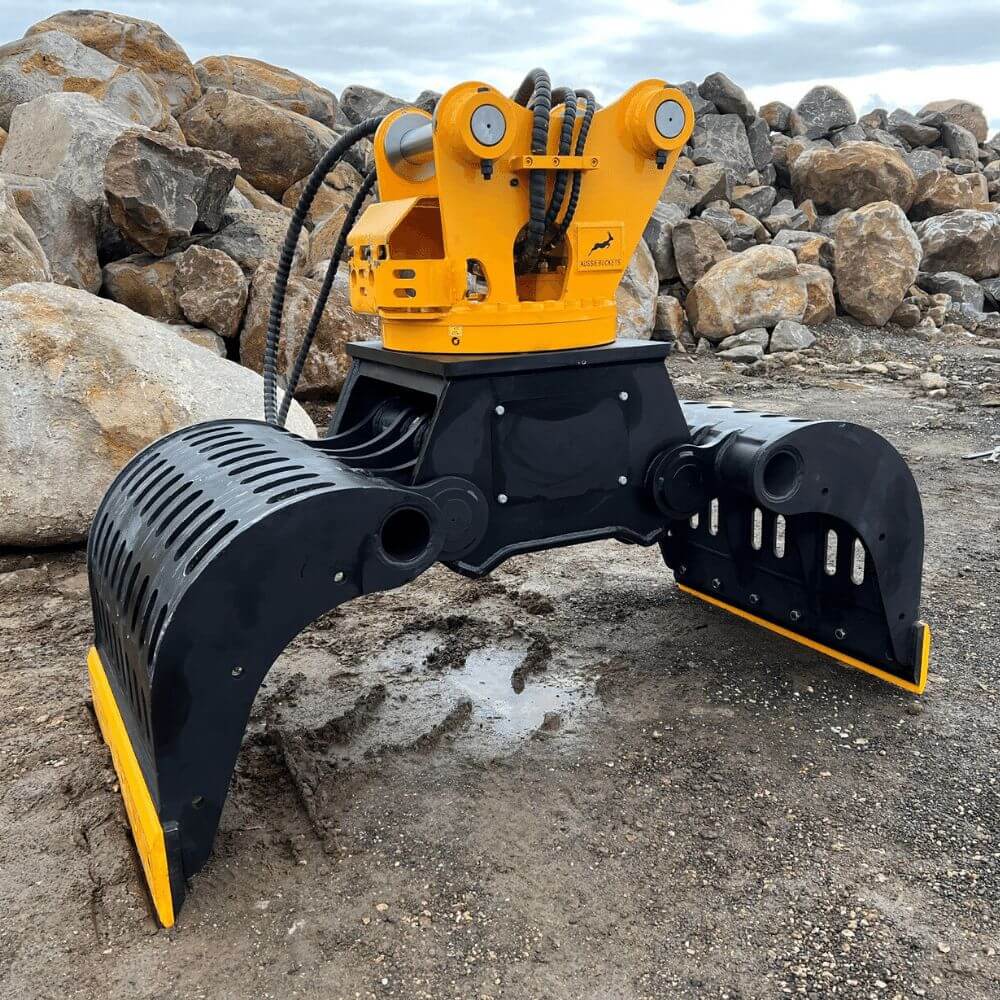

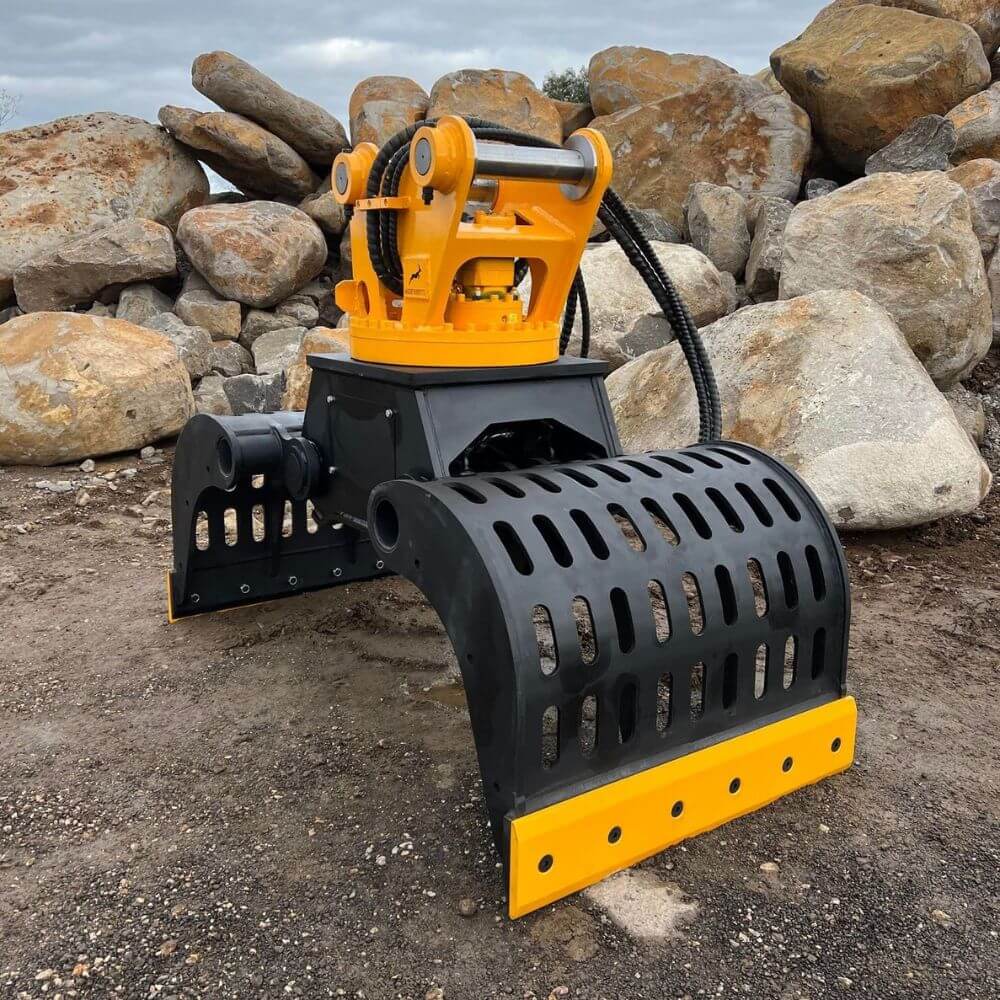

Rotating Demolition/Sorting Grab

BULK MATERIAL HANDLING

DEMO-
LITION

RE-
CYCLING

HARDOX SORTING CLAMSHELLS

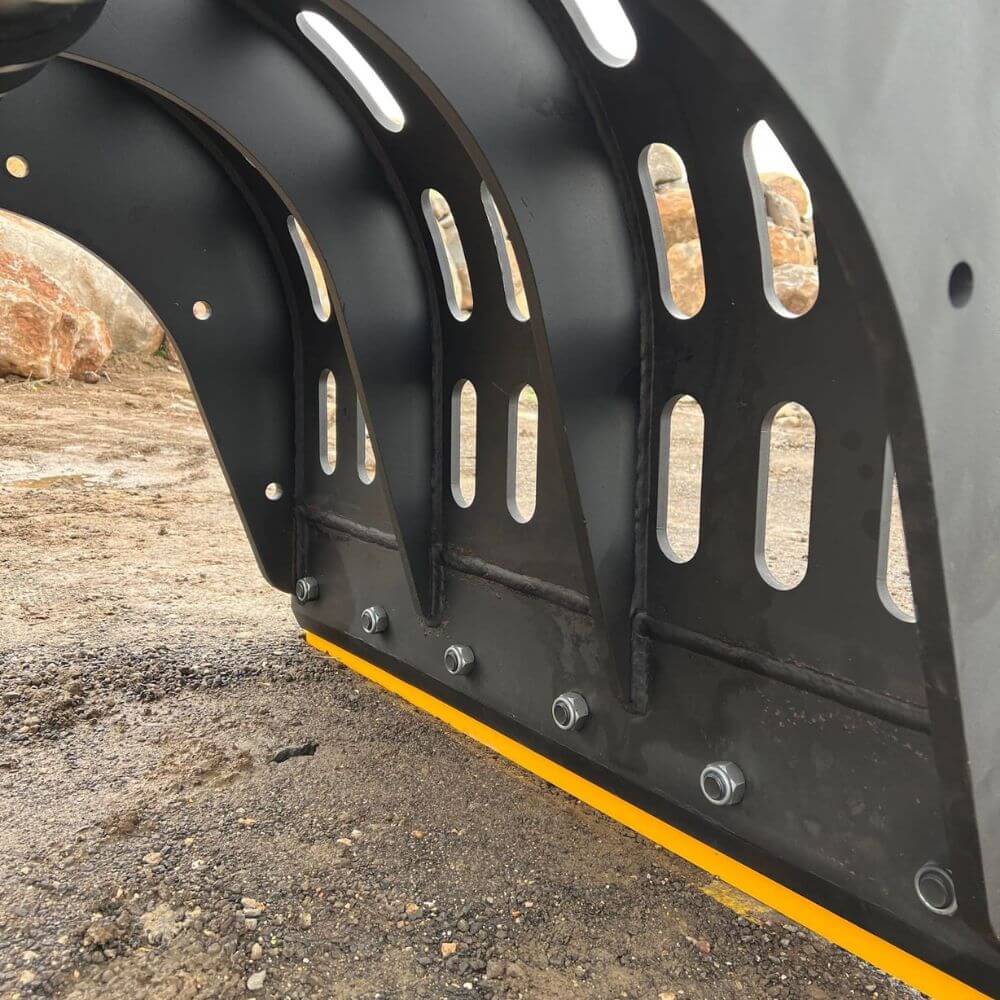

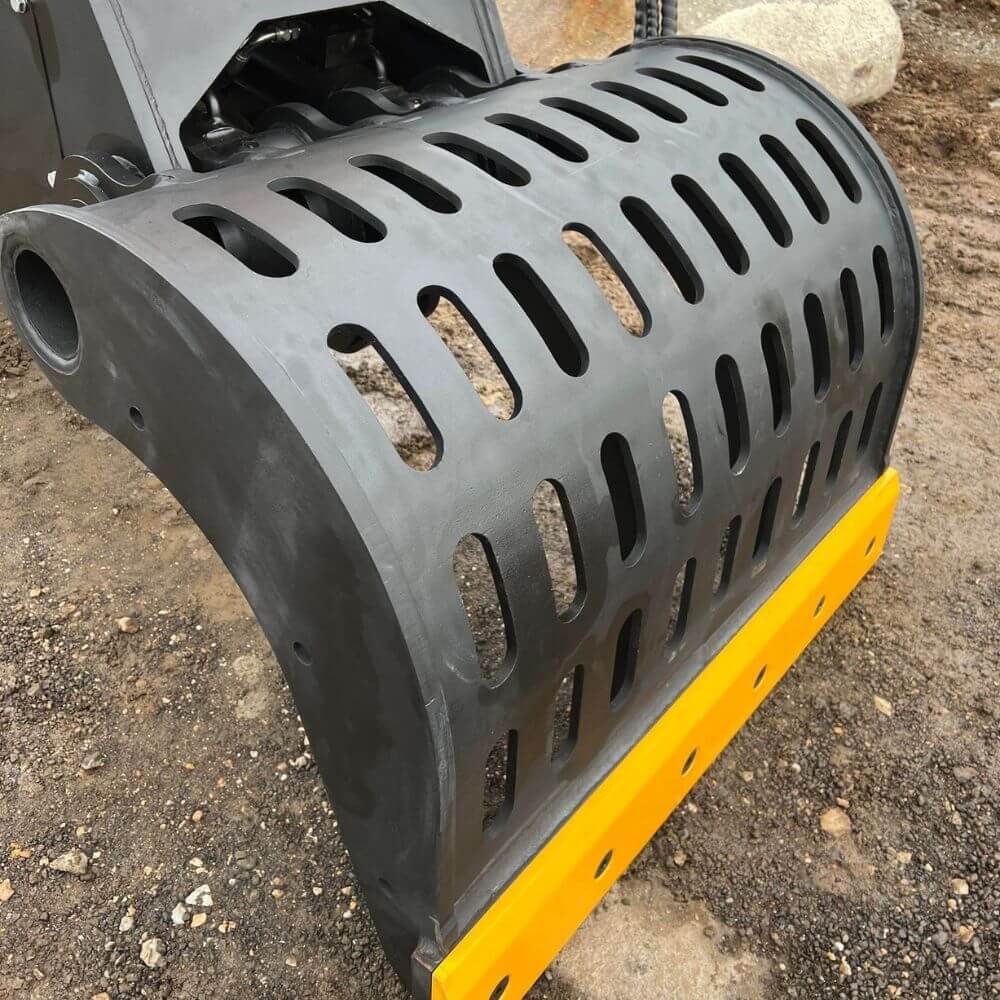

The shells are equipped with a perforated shell plate made of HARDOX material.

SUPERIOR LOAD CONTROL

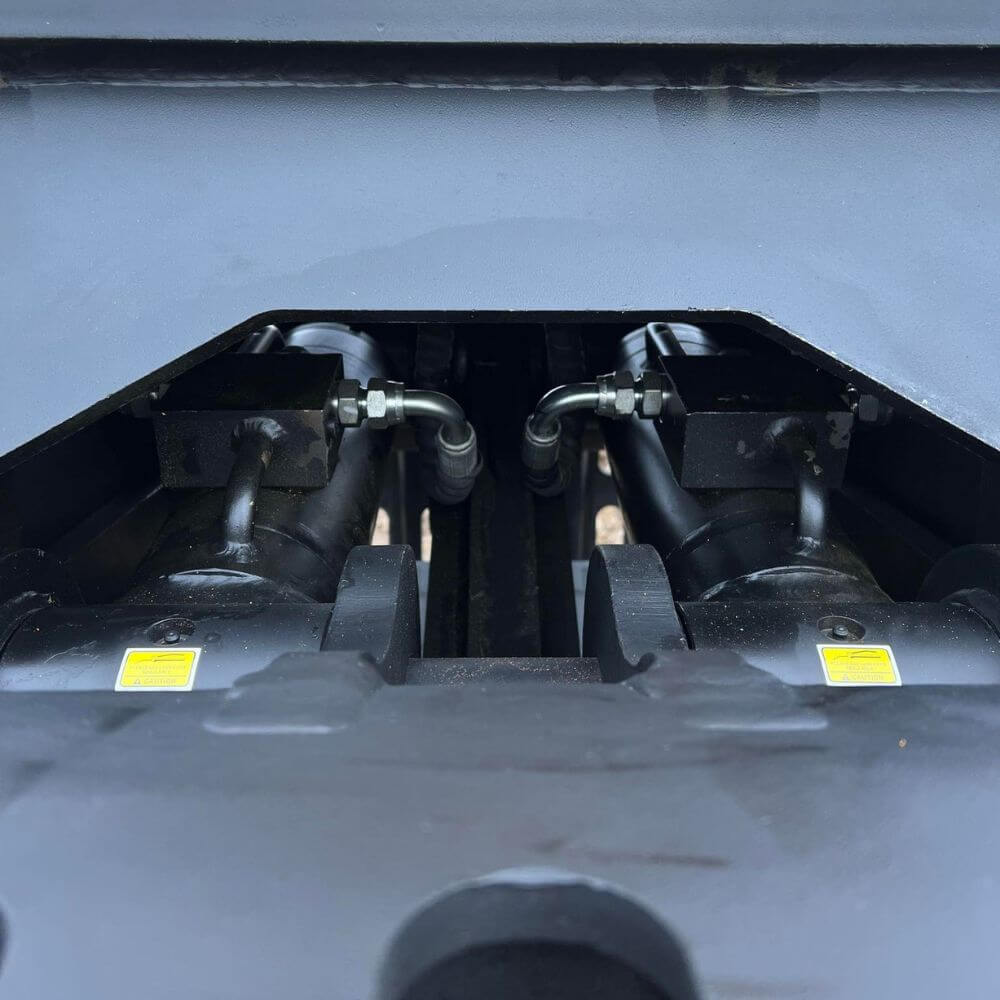

The hydraulic cylinders are all fitted with a load control valve which protects against the unexpected opening of the jaws.

ROBUST CONSTRUCTION

Manufactured to have broad pivotal points, the hardened pins/bearings and larger bushes decrease the overall torsional tension and provide maximum support, extending the life of the demolition grab.

HEAVY DUTY PERFORMANCE

The larger Hydraulic cylinders deliver more power thanks to high-grade Korean components that ensure durability and longevity, even in the toughest of applications.

RELIABLE HIGH QUALITY RAM

High clamping forces with powerful pistons allow secure gripping of any load.

PIN QUALITY

It is made of 1045 high-quality carbon steel that has undergone quenching and tempering, ensuring long-term integrity.

REINFORCED WELDS

Weld quality guaranteed by ultrasonic testing ensures no microscopic discontinuities, differentiating us from other suppliers.

WARRANTY YOU CAN TRUST

5 Year warranty and lifetime after-sales support with our entire range!

EFFICIENCY

Its powerful ram provides tremendous clamping force and perforated jaws that deliver optimum visibility and ensure precise handling capabilities significantly improving productivity and efficiency.

PERFORMANCE

The Rotating Demolition Grab is designed to deliver superior performance in a variety of demolition and heavy-duty material handling applications. Its robust design, featuring HARDOX steel construction and a dependable slew box, allows it to withstand extreme torsional force and handle heavy loads with ease.

DURABILITY

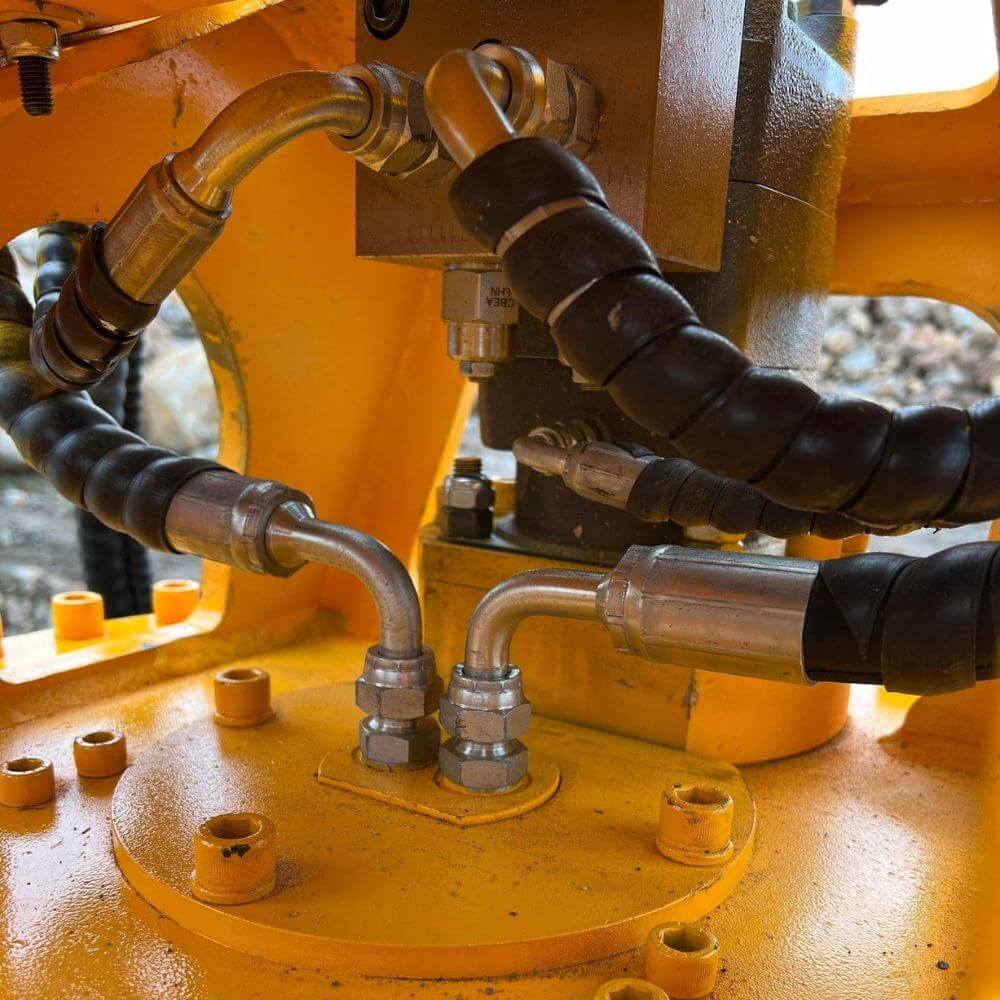

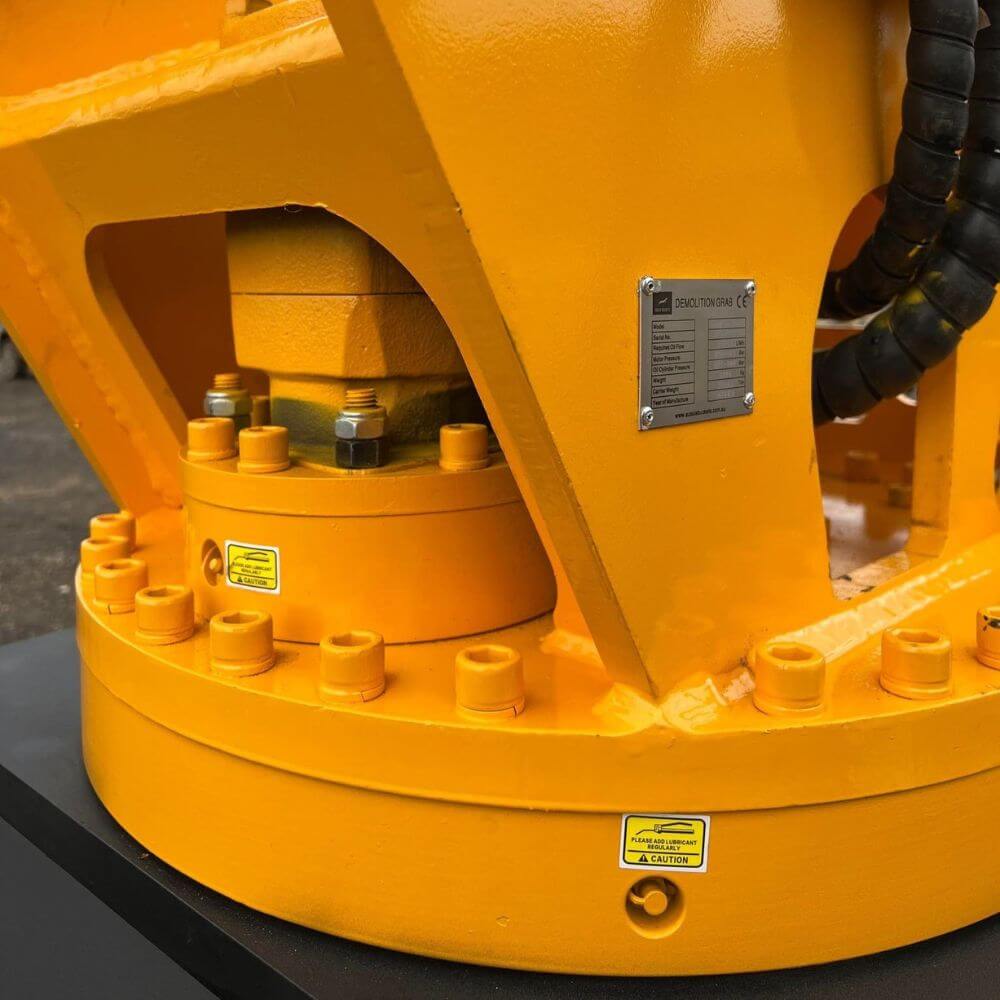

The grab's hydraulic cylinder is fitted with a load control valve to protect against unexpected jaw openings. The cylinder has an extra-long stroke to ensure the jaws can close even if the edges are worn. The grab's hydraulic motor, heavy-duty slew ring, and pinion provide full 360° rotation, and the grab's main body, jaws, and cutting edge are made from Hardox 400 material for added strength and abrasion resistance.

CLICK FOR QUOTE

Interested in our Rotating Demolition/Sorting Grab? Hit our 'Quick Quote' button below to complete our form in 30 seconds or less to receive your custom quote today!

3-4t
4-6t
6-10t
12-16t
17-23t
24-28t
30-40t

3-4t

Name

ROTATING DEMOLITION/SORTING GRAB (3-4t)

Max Open

1160mm

Width

450mm

Weight

200-220kg

Motor

WORM DRIVE

Motor Pres.

90-110kg/cm²

Motor Flow Rate

20-35lpm

Cylinder Frc

4t

Cyl Pres.

110 -140kg/cm²

Cyl Flow Rate

25-40lpm

Model

ABRDG - 210

More Info

Quick Quote
4-6t

Name

ROTATING DEMOLITION/SORTING GRAB (4-6t)

Max Open

1400mm

Width

500mm

Weight

310-330kg

Motor

PINION DRIVE

Motor Pres.

110-120kg/cm²

Motor Flow Rate

30-55lpm

Cylinder Frc

8t

Cyl Pres.

160-200kg/cm²

Cyl Flow Rate

30-55lpm

Model

ABRDG - 320

More Info

Quick Quote
6-10t

Name

ROTATING DEMOLITION/SORTING GRAB (6-10t)

Max Open

1500mm

Width

600mm

Weight

440-460kg

Motor

PINION DRIVE

Motor Pres.

110-120kg/cm²

Motor Flow Rate

30-55lpm

Cylinder Frc

9t

Cyl Pres.

160-200kg/cm²

Cyl Flow Rate

50-100lpm

Model

ABRDG - 450

More Info

Quick Quote
12-16t

Name

ROTATING DEMOLITION/SORTING GRAB (12-16t)

Max Open

1700mm

Width

800mm

Weight

900-960kg

Motor

PINION DRIVE

Motor Pres.

120-140kg/cm²

Motor Flow Rate

40-70lpm

Cylinder Frc

15t

Cyl Pres.

180-230kg/cm²

Cyl Flow Rate

90-110lpm

Model

ABRDG - 930

More Info

Quick Quote
17-23t

Name

ROTATING DEMOLITION/SORTING GRAB (17-23t)

Max Open

1950mm

Width

1030mm

Weight

1300-1500kg

Motor

PINION DRIVE

Motor Pres.

120-140kg/cm²

Motor Flow Rate

40-70lpm

Cylinder Frc

16t

Cyl Pres.

180-230kg/cm²

Cyl Flow Rate

100-140lpm

Model

ABRDG - 1400

More Info

Quick Quote
24-28t

Name

ROTATING DEMOLITION/SORTING GRAB (24-28t)

Max Open

1950mm

Width

1030mm

Weight

1350-1500kg

Motor

DUAL PINION

Motor Pres.

120-140kg/cm²

Motor Flow Rate

40-70lpm

Cylinder Frc

16t

Cyl Pres.

180-230kg/cm²

Cyl Flow Rate

100-140lpm

Model

ABRDG - 1450

More Info

Quick Quote
30-40t

Name

ROTATING DEMOLITION/SORTING GRAB (30-40t)

Max Open

2400mm

Width

1200mm

Weight

1700-2100kg

Motor

DUAL PINION

Motor Pres.

120-140kg/cm²

Motor Flow Rate

40-70lpm

Cylinder Frc

18t

Cyl Pres.

200-250kg/cm²

Cyl Flow Rate

160-190lpm

Model

ABRDG - 1900

More Info

Quick Quote
