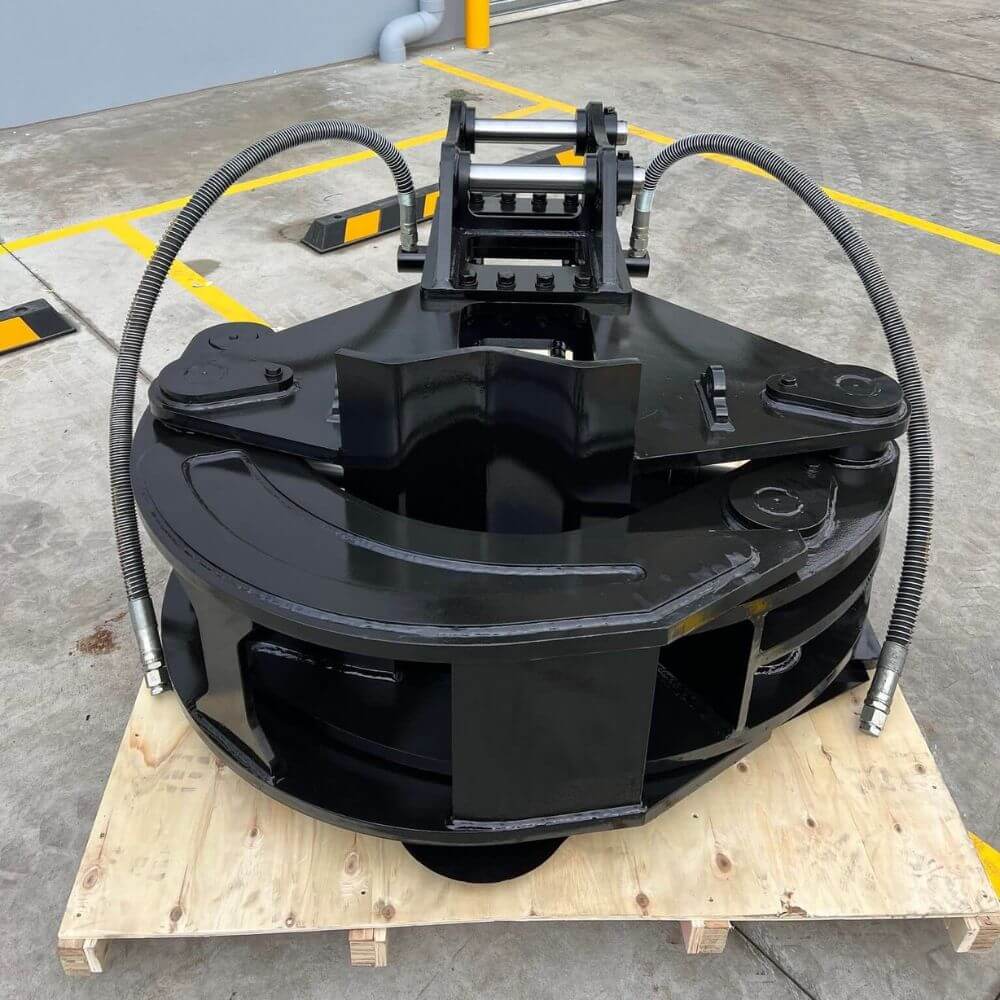

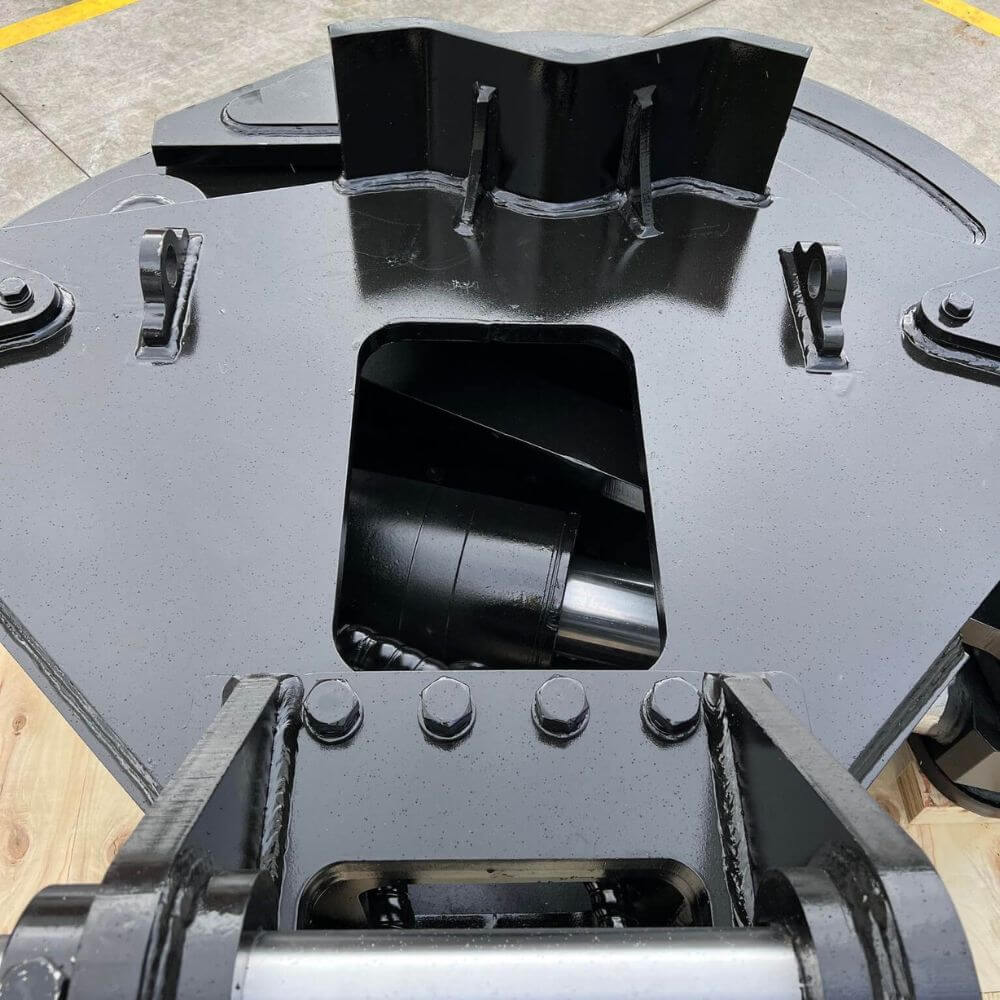

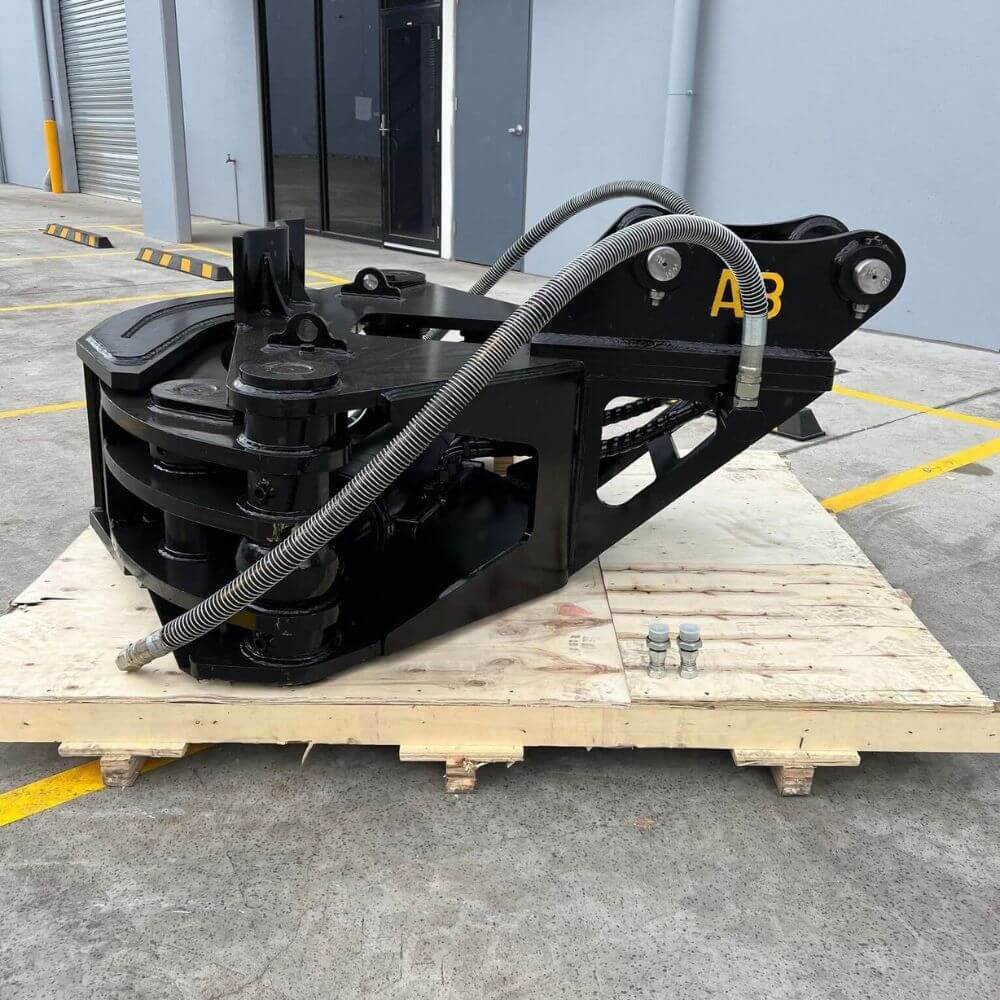

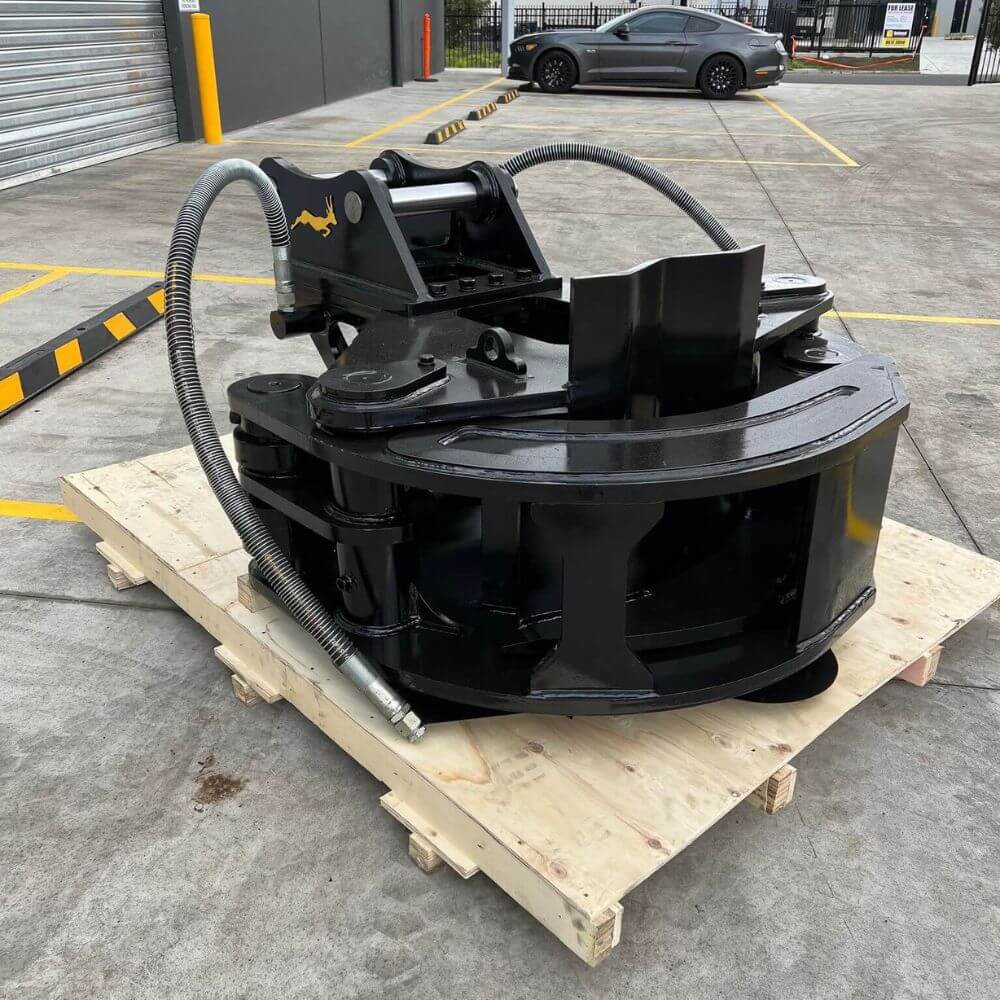

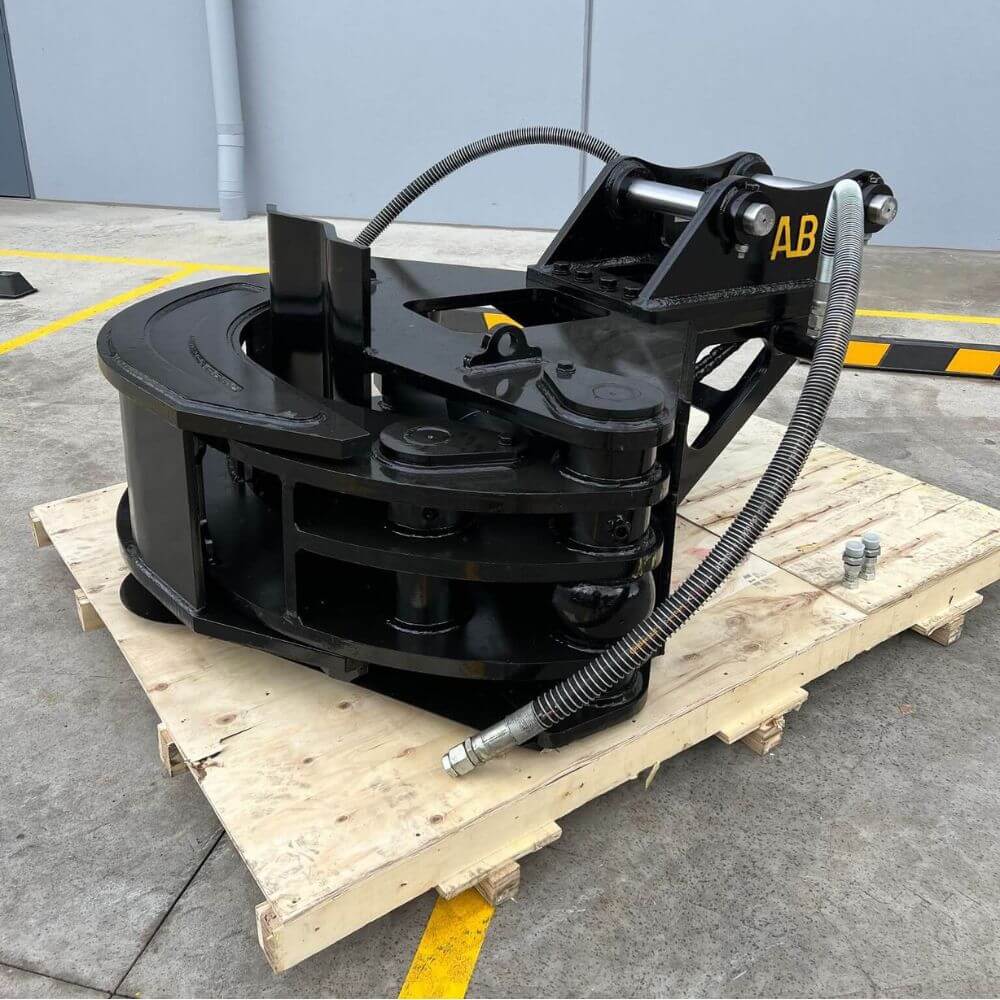

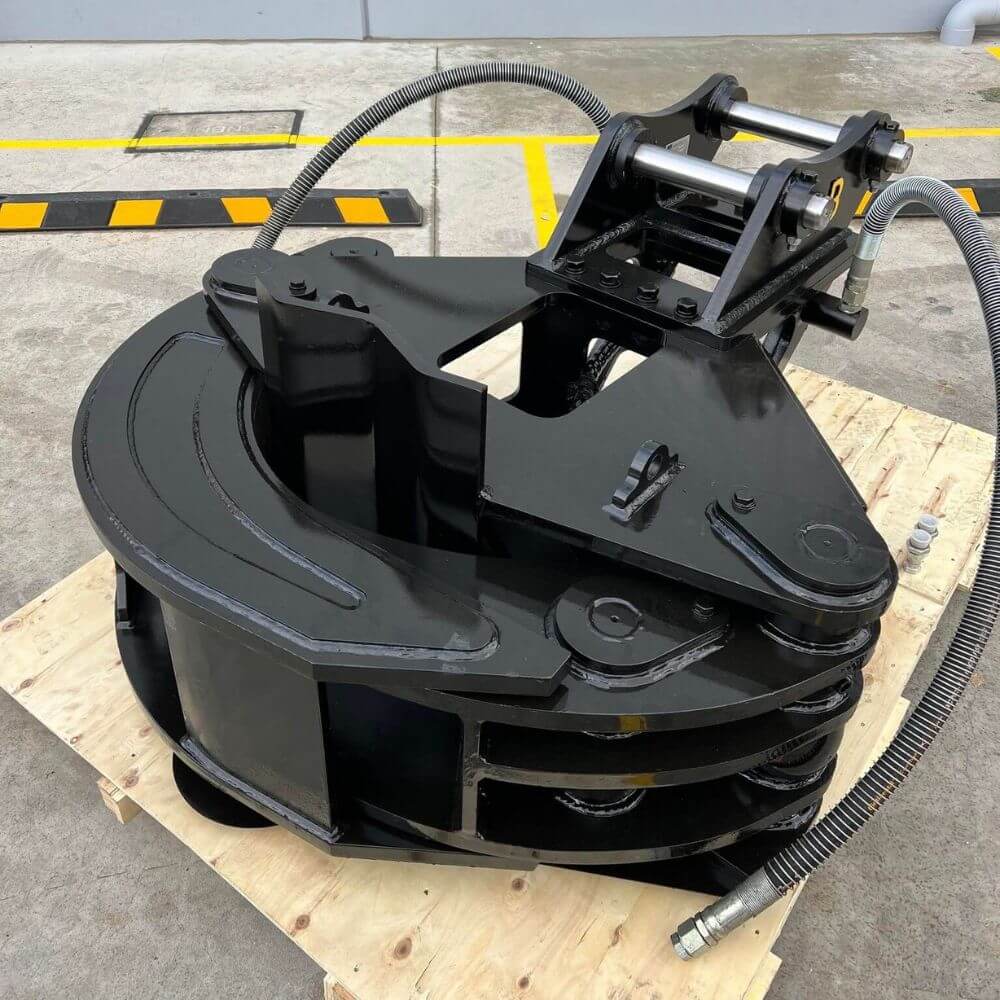

Excavator Attachment Hydraulic Tree Shear
HYDRAULIC TREE SHEAR

available for 4t - 30t

Excavator Attachment Hydraulic Tree Shear
HYDRAULIC TREE SHEAR

EFFICIENCY
RELIABILITY
VERSATILITY

The tree shear has been designed for the felling and deforestation of trees and maintenance of bushes, such as the thinning of shrubs of different sizes. Indicated for operating at job sites with difficult access along roadsides, steep slopes, and orchards, it ensures high productivity by recycling the cut material for subsequent processing steps (stacking, chipping, grinding, etc.).

The tree shear has been designed for the felling and deforestation of trees and maintenance of bushes, such as the thinning of shrubs of different sizes. Indicated for operating at job sites with difficult access along roadsides, steep slopes, and orchards, it ensures high productivity by recycling the cut material for subsequent processing steps (stacking, chipping, grinding, etc.).

New call-to-action

AG &
FORESTRY

Excavator Attachment Hydraulic Tree Shear

UTIL-
ITIES

Excavator Attachment Hydraulic Tree Shear

New call-to-action

Excavator Attachment Hydraulic Tree Shear Excavator Attachment Hydraulic Tree Shear Excavator Attachment Hydraulic Tree Shear Excavator Attachment Hydraulic Tree Shear

available for 4 - 30t

Excavator Attachment Hydraulic Tree Shear



New call-to-action



1

High-Quality Steel

The main body features HARDOX500 steel and 450-grade elements. The Main cutting blade is made from HARDOX600.

2

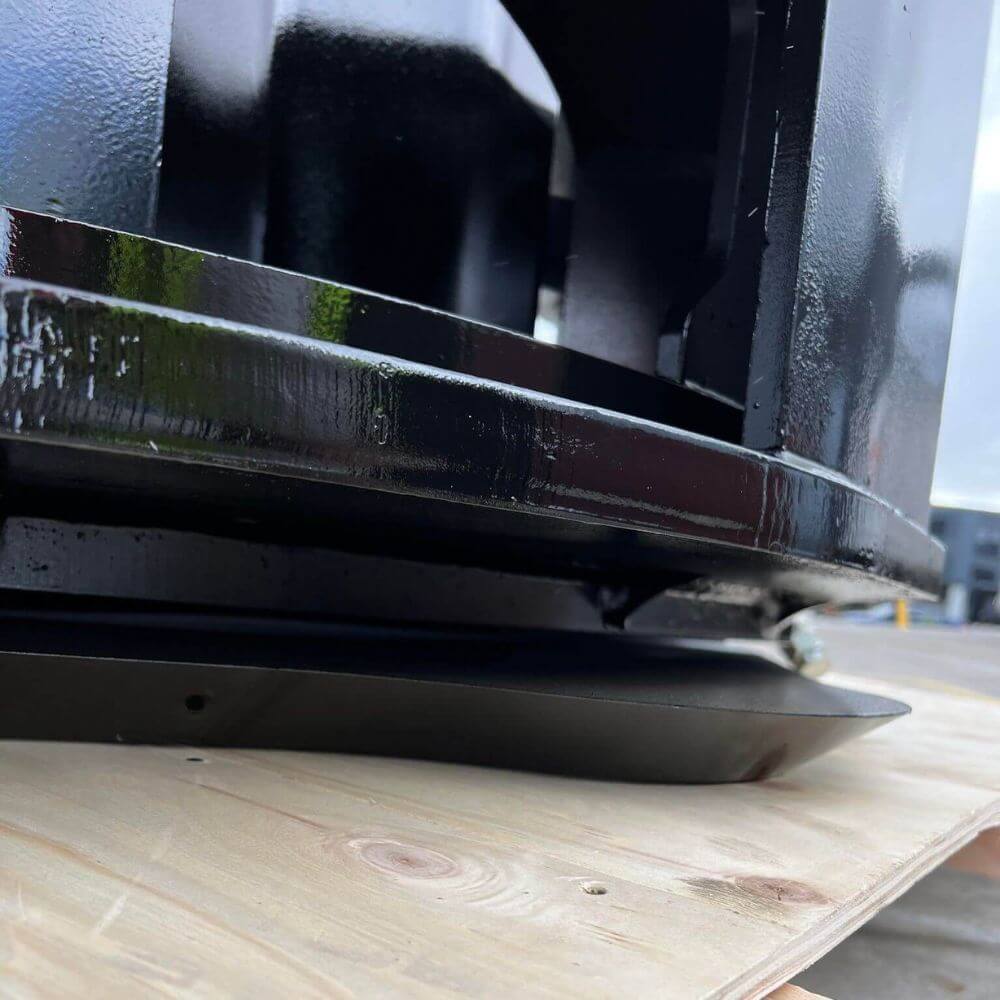

SHARPENED BLADES

HARDOX600 cutting blade is sharpened to ensure that it withstands wearing and torsion.

3

ROBUST CONSTRUCTION

Hardened pins/bearings and larger bushes decrease the overall torsional tension and provide maximum support.
4

GREATER HANDLING CAPABILITIES

The wide opening jaw makes it easy to use and get in position, while the curved guides help ensure it is gripped securely and safely.

5

ADDITIONAL HYDRAULIC PROTECTION

Robust hose guards protect hose lines, and all hoses are wrapped with a protective covering.

6

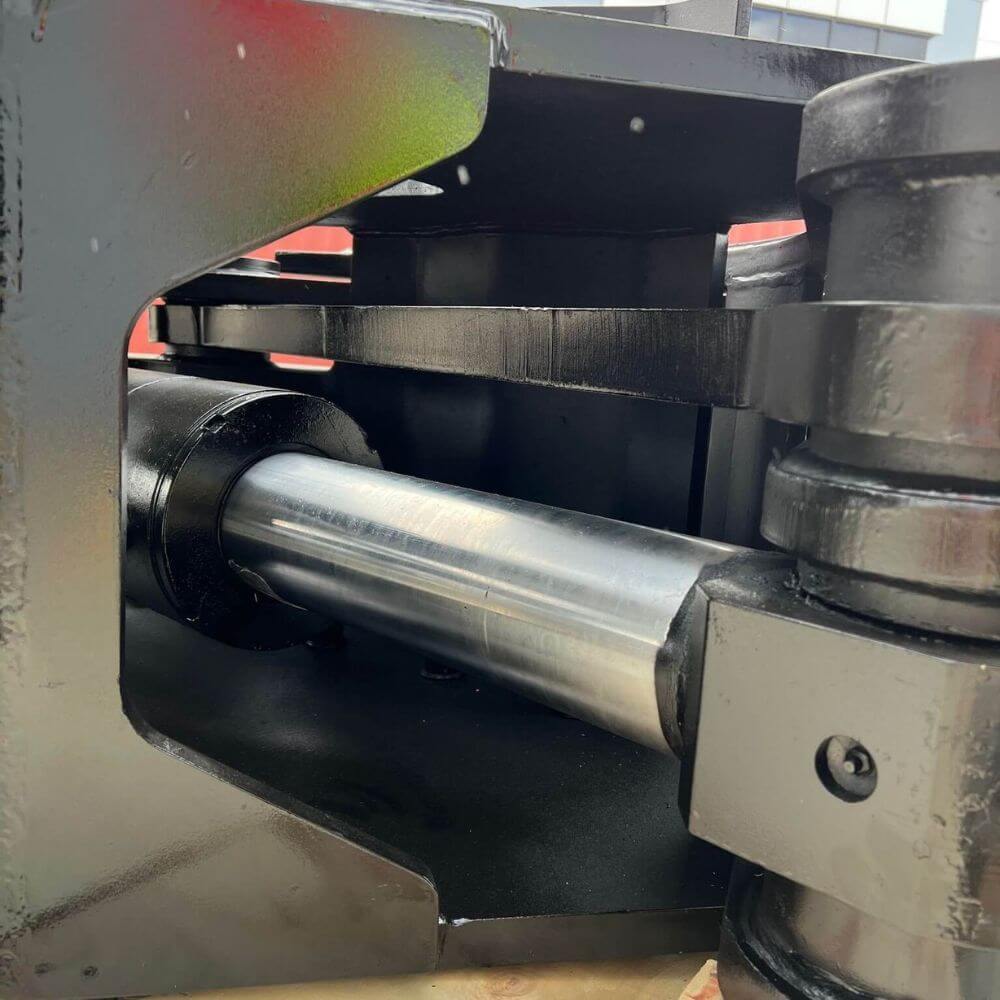

EXTRA POWERFUL CYLINDER

The cycle takes just seconds per tree and you can immediately move the tree out of the way and move on to the next.

7

MAST SUPPORT

This support is fitted to help keep the tree straight and prevent it from falling back towards the cab, ensuring it is held firmly.

8

REINFORCED PIVOT POINTS

Heat-treated and reinforced articulating pivot pins allow for immense hydraulic cylinder pressure whilst offering durability and wear protection.

9

WARRANTY YOU CAN TRUST

5 Year warranty and lifetime after-sales support with our entire range!



New call-to-action





EFFICIENCY

Effectively and efficiently speed the time your team spends on logging and tree-felling jobs, featuring a HARDOX600 cutting blade that is certain to make quick work of any tree in its grasp.

Excavator Attachment Hydraulic Tree Shear


RELIABILITY

Manufactured with hardened pins and bearings, and undergone the quenching and tempering process, plus larger bushes to decrease overall tension, our Tree Shear is made to last.

Excavator Attachment Hydraulic Tree Shear


VERSATILITY

Our Tree Shear is capable of handling a vast range of applications such as the safe removal of trees, general harvest of felling trees and bushes, deforestation of trees, maintenance along roadsides, hazardous tree removals and more.

Excavator Attachment Hydraulic Tree Shear


CLICK FOR QUOTE

Interested in our Hydraulic Tree Shear? Hit our 'Quick Quote' button below to complete our form in 30 seconds or less to receive your custom quote today!

New call-to-action

Excavator Attachment Hydraulic Tree Shear

Specifications

  • 4-6t
    Name
    HYDRAULIC TREE SHEAR (4-6t)
    TONNAGE
    4-6t
    OPENING SIZE
    564mm
    MAXIMUM TREE DIAMETER
    200mm
    PRESSURE
    25MPa
    WEIGHT
    265kg
    MODEL
    ABTS4060-265MD
    More Info
    Quick Quote
  • 8-10t
    Name
    HYDRAULIC TREE SHEAR (8-10t)
    TONNAGE
    8-10t
    OPENING SIZE
    607mm
    MAXIMUM TREE DIAMETER
    300mm
    PRESSURE
    25MPa
    WEIGHT
    420kg
    MODEL
    ABTS80100-420MD
    More Info
    Quick Quote
  • 12-18t
    Name
    HYDRAULIC TREE SHEAR (12-18t)
    TONNAGE
    12-18t
    OPENING SIZE
    847mm
    MAXIMUM TREE DIAMETER
    350mm
    PRESSURE
    25MPa
    WEIGHT
    1160kg
    MODEL
    ABTS120180-1160MD
    More Info
    Quick Quote
  • 20-30t
    Name
    HYDRAULIC TREE SHEAR (20-30t)
    TONNAGE
    20-30t
    OPENING SIZE
    995mm
    MAXIMUM TREE DIAMETER
    500mm
    PRESSURE
    25MPa
    WEIGHT
    1560kg
    MODEL
    ABTS200300-1560MD
    More Info
    Quick Quote
