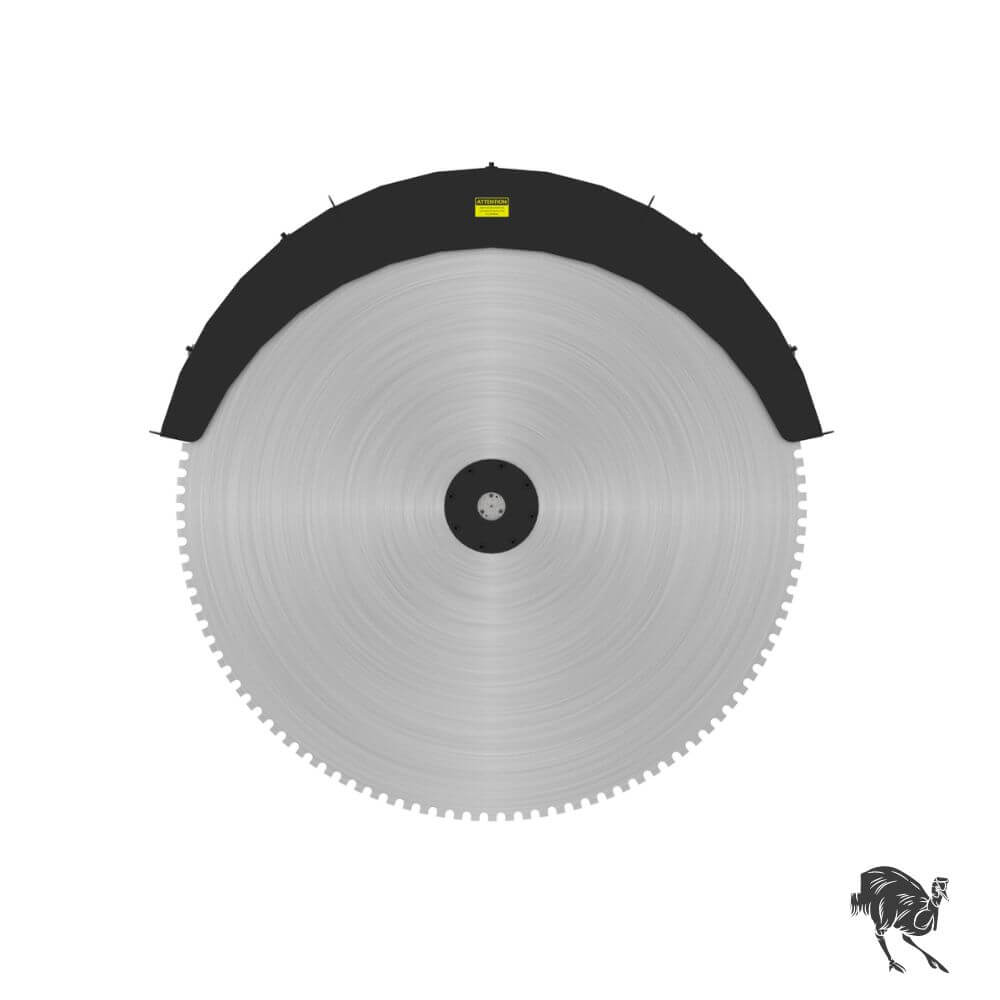

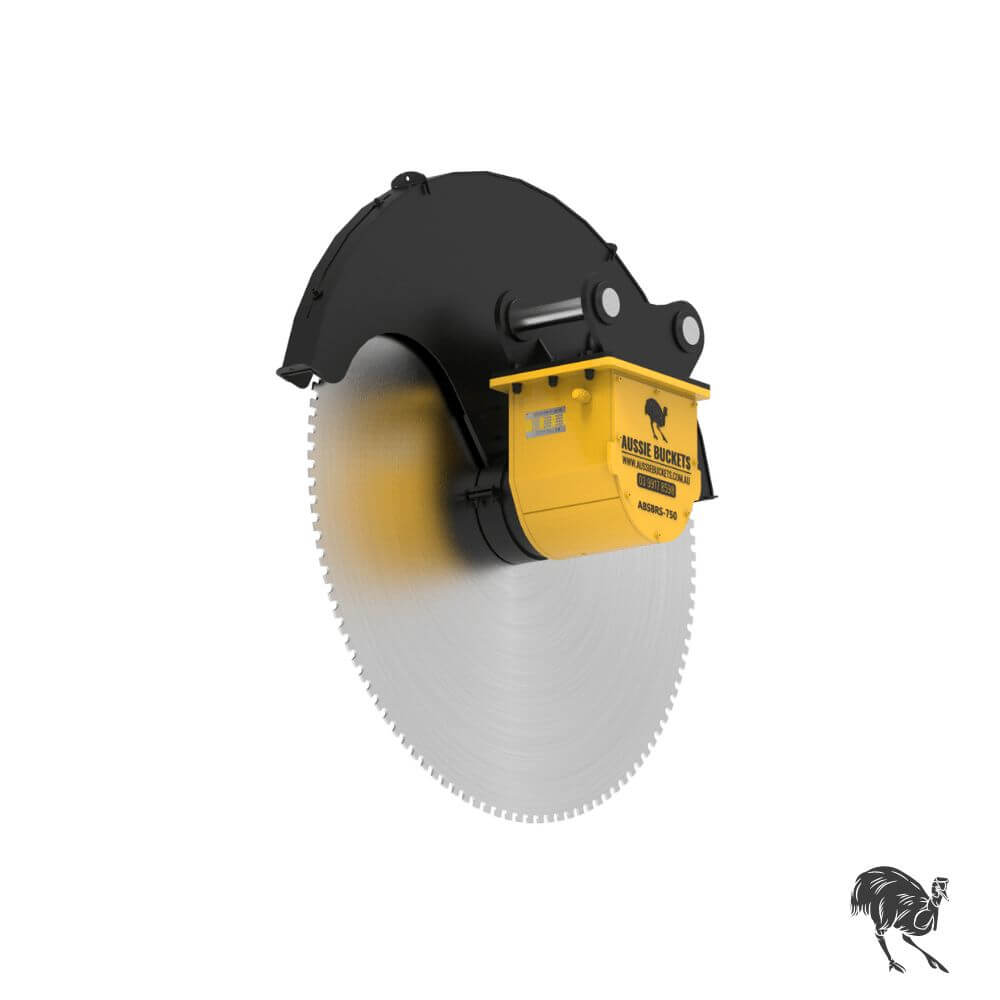

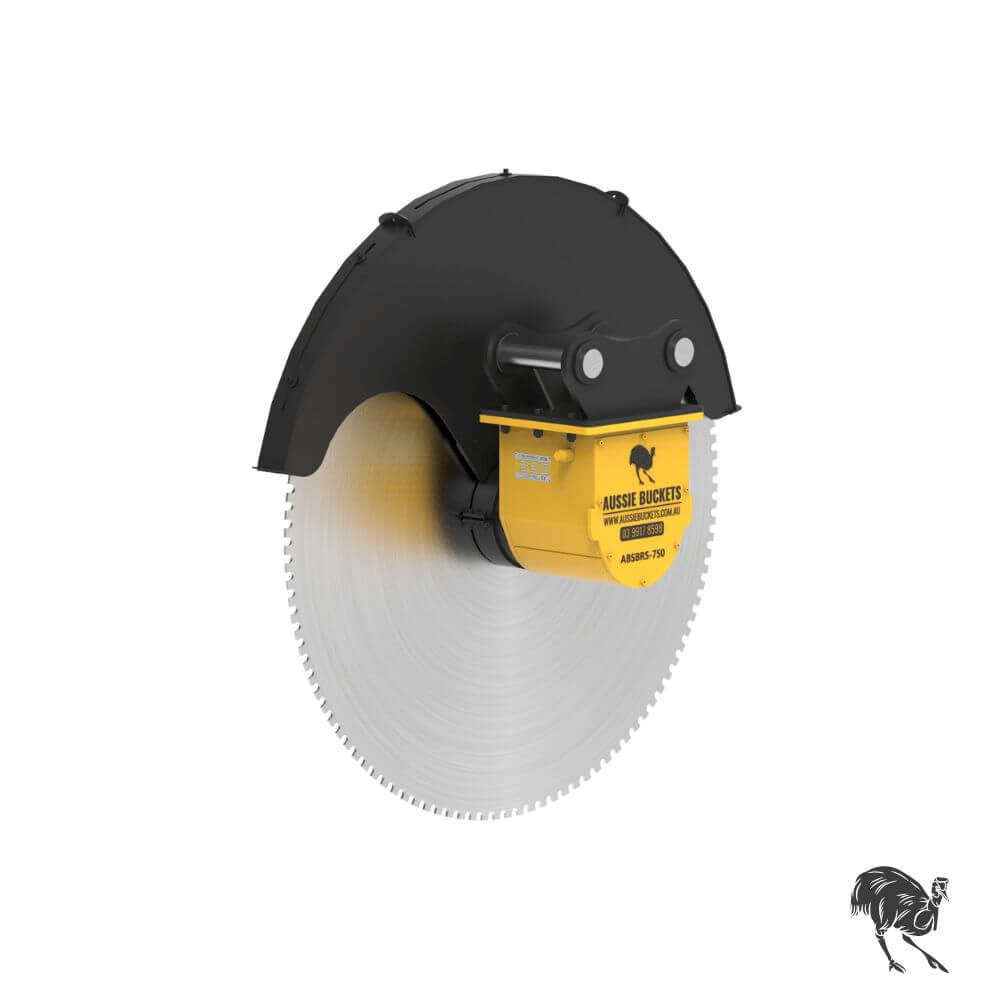

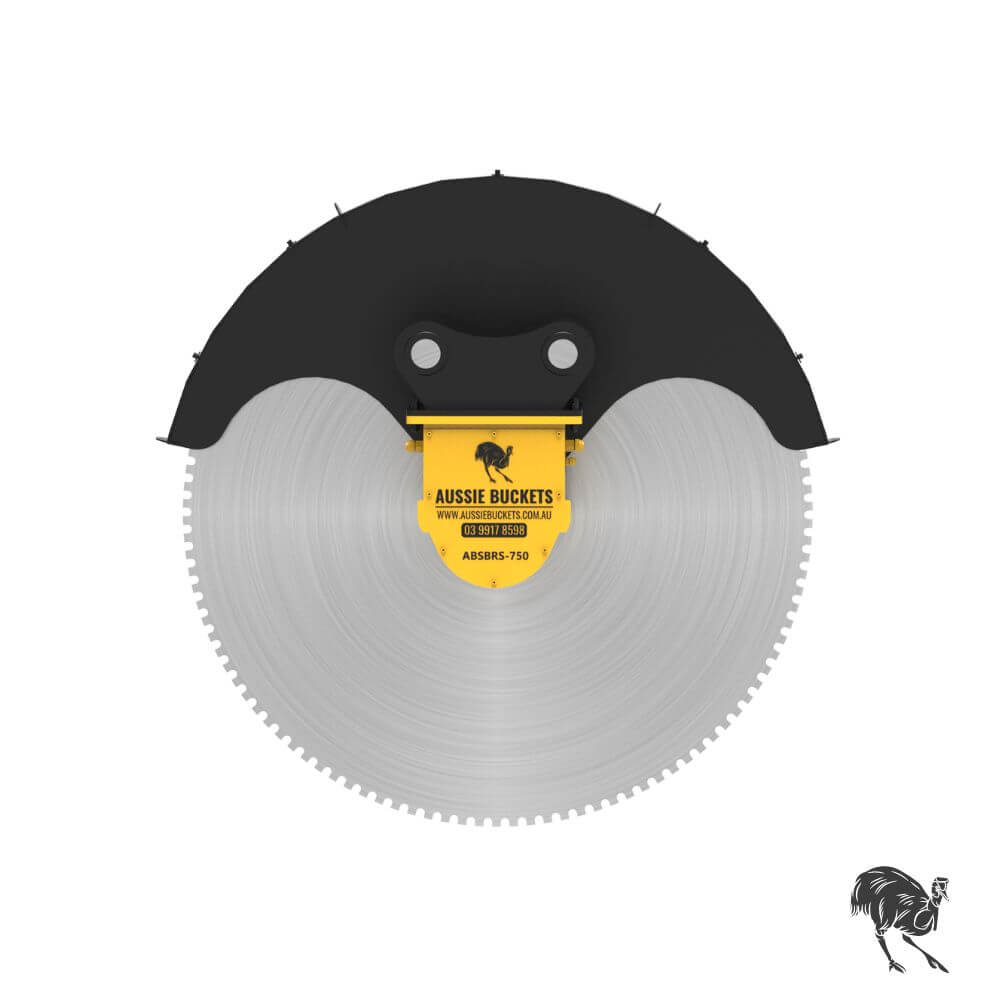

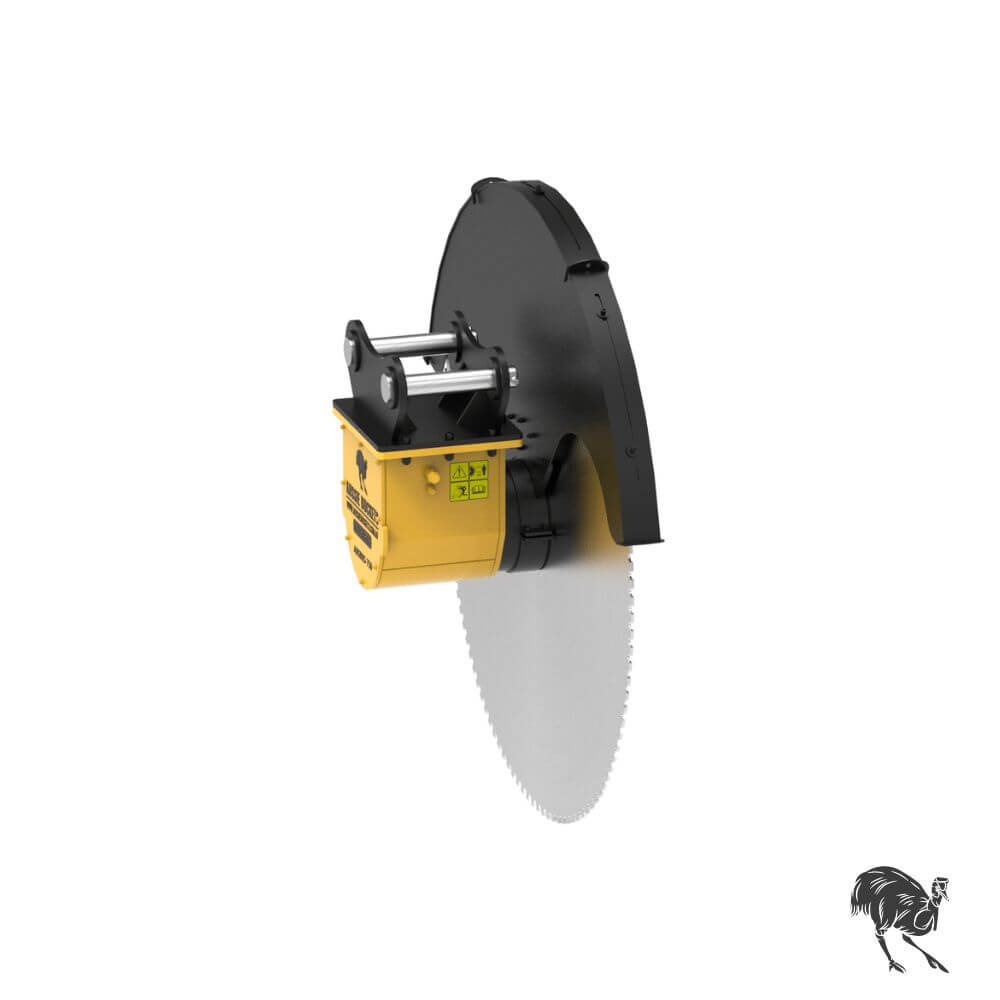

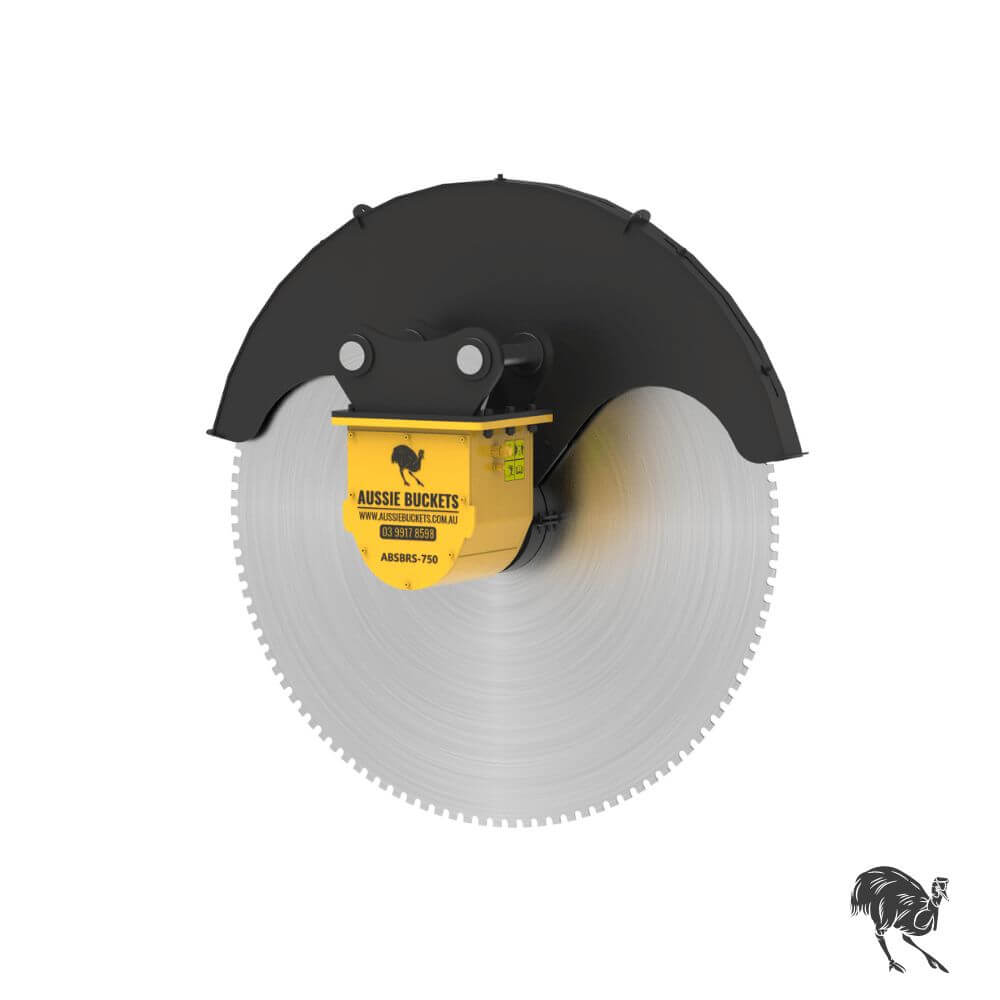

SINGLE BLADE Diamond ROCK SAW

SINGLE BLADE Diamond ROCK SAW
AVAILABLE FOR 5T - 45T
The Single Blade Diamond Rock Saw is at the cutting edge of high-performance excavator attachments. This powerful and versatile attachment can be used for demolition, boundary cutting, concrete cutting, trenching, rock and stone cutting, cabling and trimming.
The Single Blade Diamond Rock Saw is at the cutting edge of high-performance excavator attachments. This powerful and versatile attachment can be used for demolition, boundary cutting, concrete cutting, trenching, rock and stone cutting, cabling and trimming.
RAPID AUTOMATIC BLADE BREAK
ADJUSTABLE SHIELD
BEARING HUB
DIRECT DRIVE

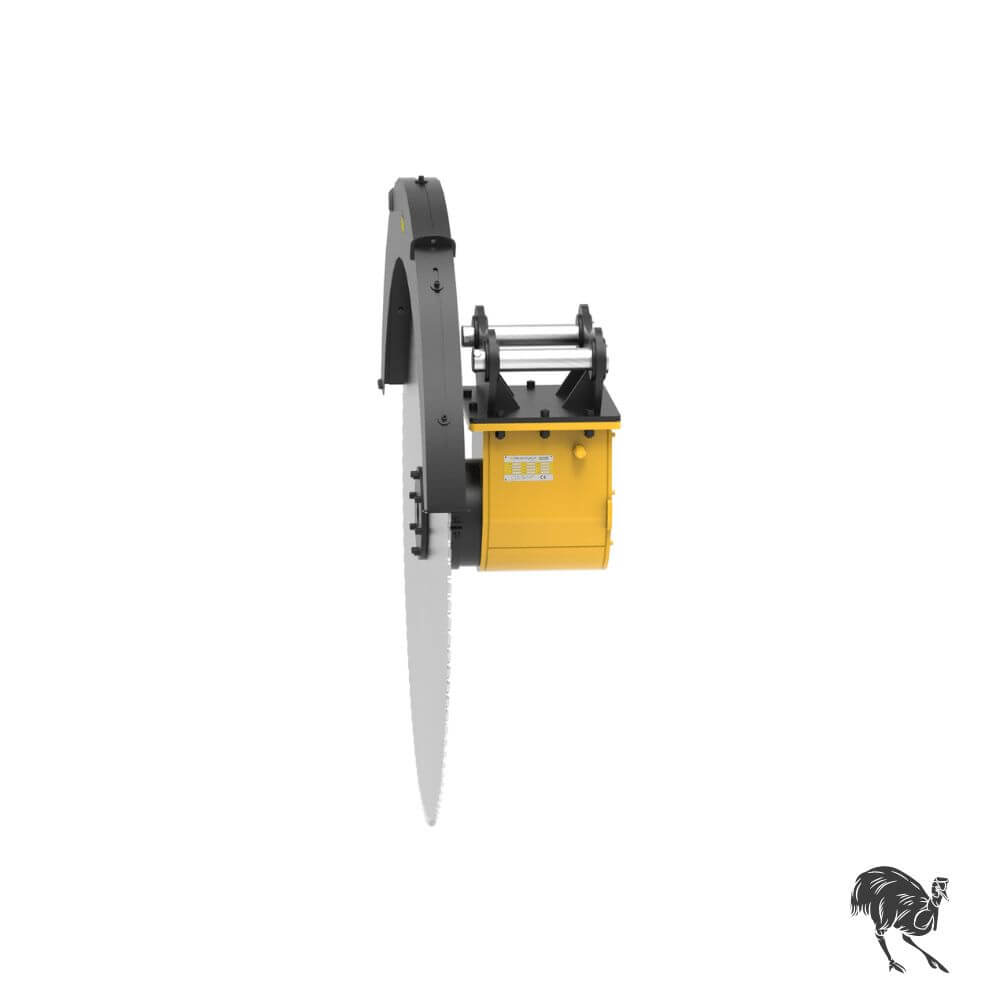

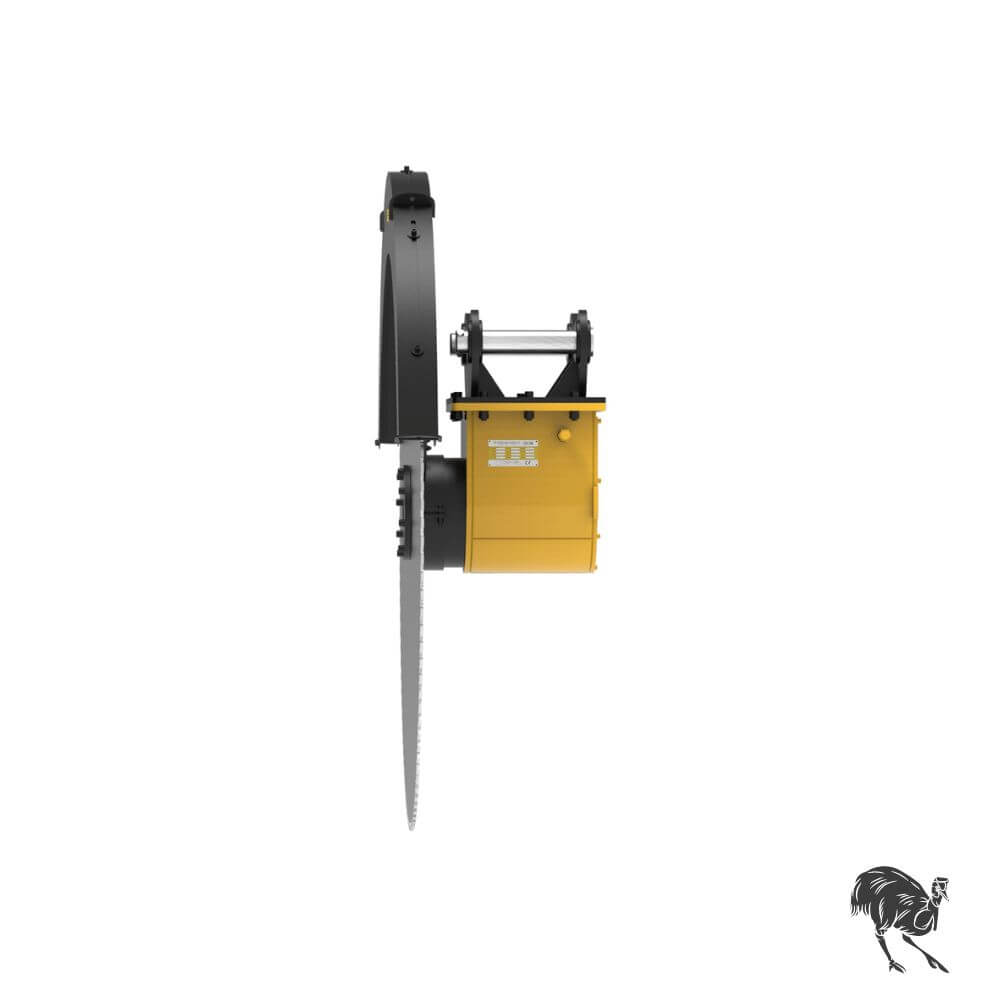

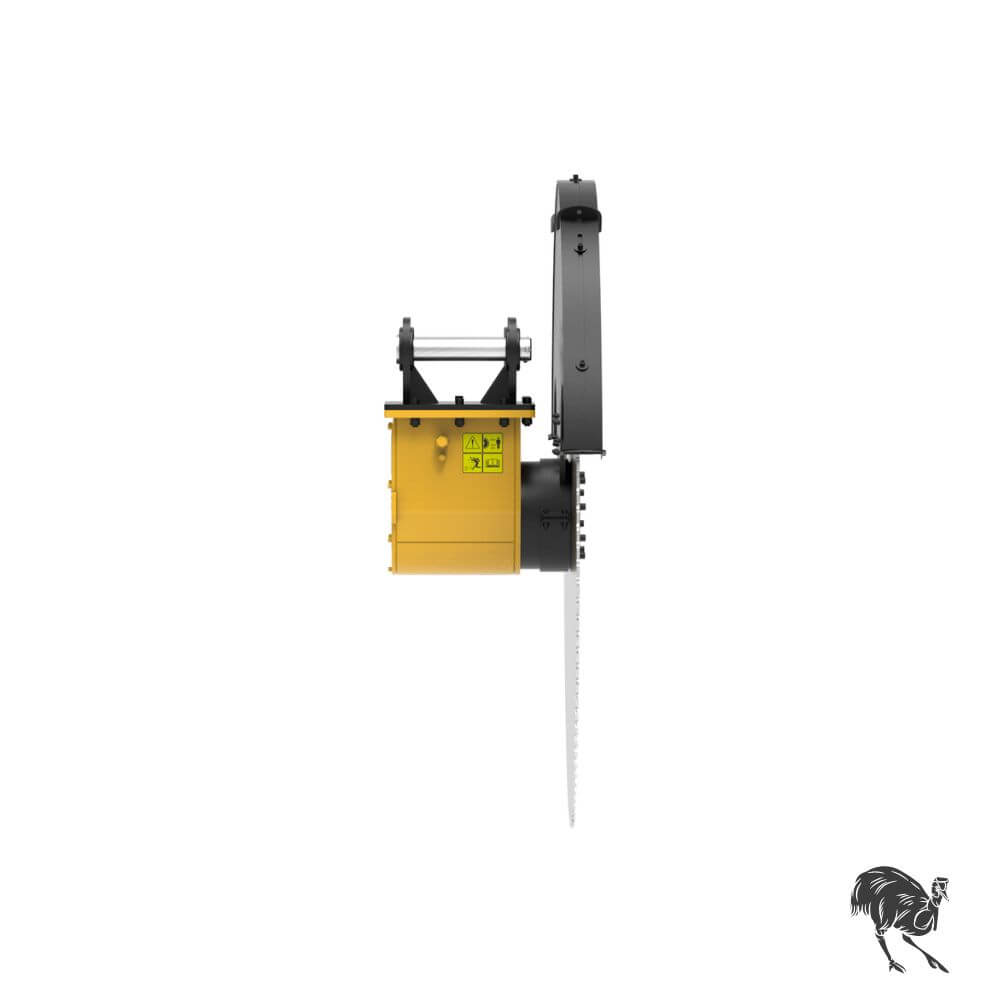

NARROW BODY FOR TRENCHING
REPLACEABLE BLADE
WARRANTY YOU CAN TRUST
PRECISE CUTTING
The precise cutting capability of the Single Blade Diamond Rock Saw is achieved by its thin and small profile. The thin and small profile allows the saw to reach tight and hard-to-reach spaces, and make accurate and precise cuts in those areas. The thin and small profile also enables the saw to make precise cuts while maintaining a high level of control and stability.

RELIABLE
Features a rapid automatic blade break, which is a hydraulic braking system that stops the blade when power is lost. The saw also has a narrow body design that allows it to be inserted into trenches, this increases its reliability as it can be used in tight spaces where other saws might not fit.

VERSATILITY
The Single Blade Diamond Rock Saw can be used for a wide range of cutting applications such as demolition, boundary cutting, concrete cutting, trenching, rock and stone cutting, cabling and trimming. This versatility allows the saw to be used in a variety of different projects and industries, making it a valuable tool for businesses in the construction, demolition, and mining sectors.

Specifications
-
5-10t
-
8-16t
-
15-25t
-
20-45t
-
5-10tNameSINGLE BLADE DIAMOND ROCK SAW (5-10t)TONNAGE5-10tMAX POWER41kWMAX FLOW150L/minRECOMMENDED FLOW60-100L/minMAX PRESSURE310barOUTPUT TORQUE600Nm @ 320barOUTPUT SHAFT SPEED0-600rpmSAW BLADE RANGE800-1400mmWEIGHT250kgMODELABSBRS - 250More Info
-
8-16tNameSINGLE BLADE DIAMOND ROCK SAW (8-16t)TONNAGE8-16tMAX POWER70kWMAX FLOW180L/minRECOMMENDED FLOW100-150L/minMAX PRESSURE310barOUTPUT TORQUE1450Nm @ 320barOUTPUT SHAFT SPEED0-600rpmSAW BLADE RANGE1400-2000mmWEIGHT350kgMODELABSBRS - 350More Info
-
15-25tNameSINGLE BLADE DIAMOND ROCK SAW (15-25t)TONNAGE15-25tMAX POWER120kWMAX FLOW250L/minRECOMMENDED FLOW150-230L/minMAX PRESSURE320barOUTPUT TORQUE2610Nm @ 320barOUTPUT SHAFT SPEED0-500rpmSAW BLADE RANGE1600-2200mmWEIGHT450kgMODELABSBRS - 450More Info
-
20-45tNameSINGLE BLADE DIAMOND ROCK SAW (20-45t)TONNAGE20-45tMAX POWER200kWMAX FLOW380L/minRECOMMENDED FLOW200-300L/minMAX PRESSURE320barOUTPUT TORQUE3200Nm @ 320barOUTPUT SHAFT SPEED0-450rpmSAW BLADE RANGE2200-3600mmWEIGHT750kgMODELABSBRS - 750More Info
