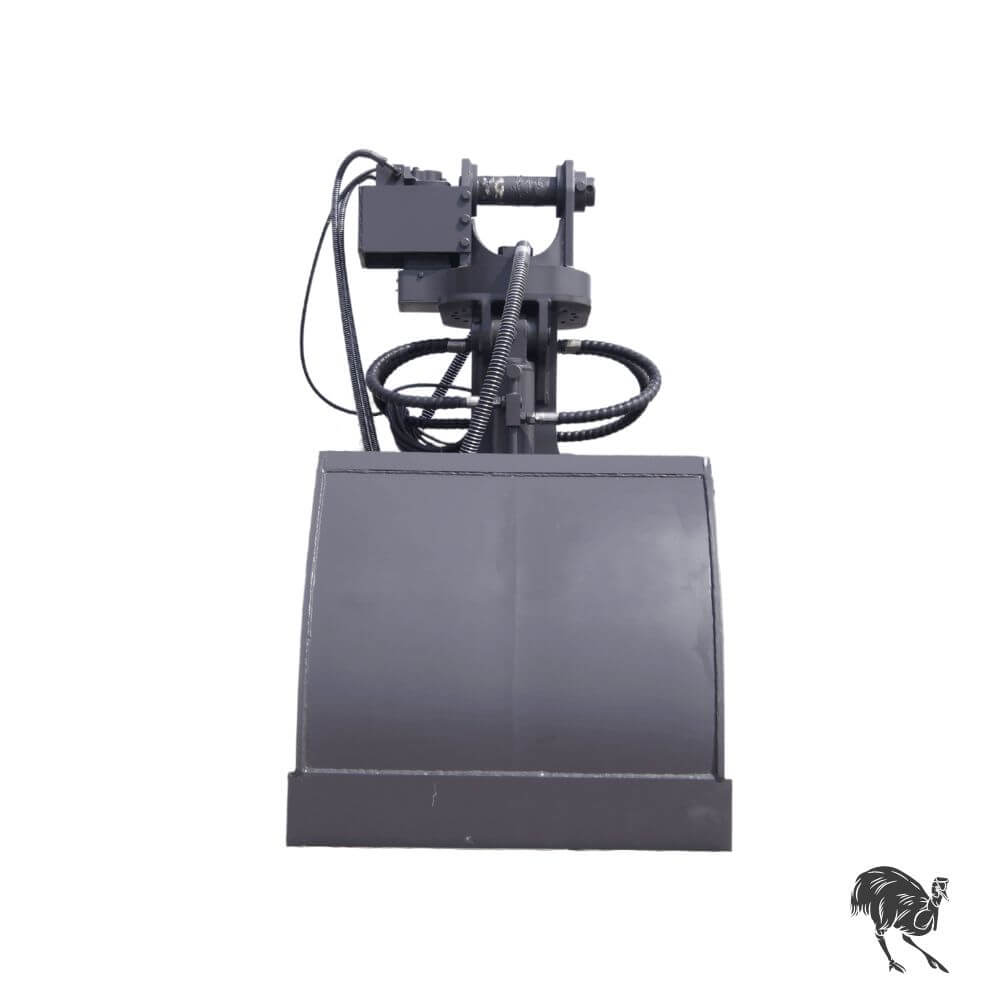

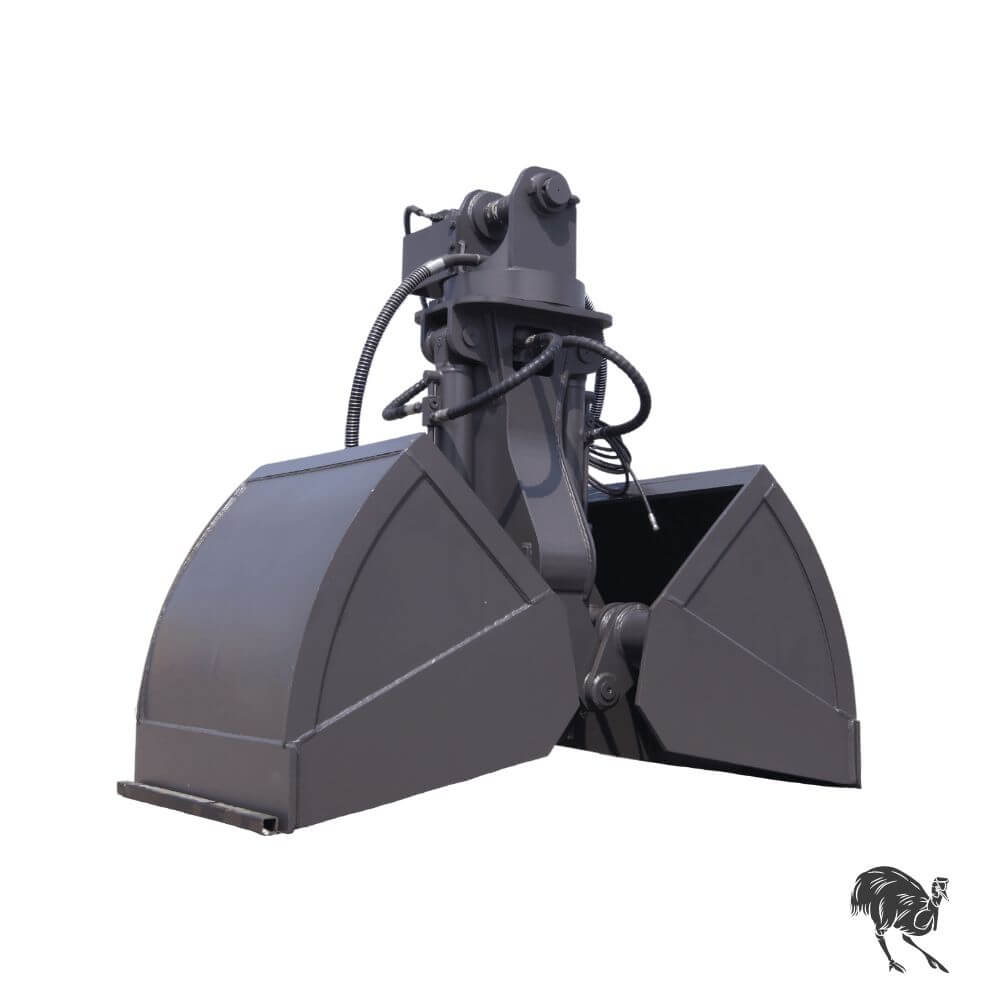

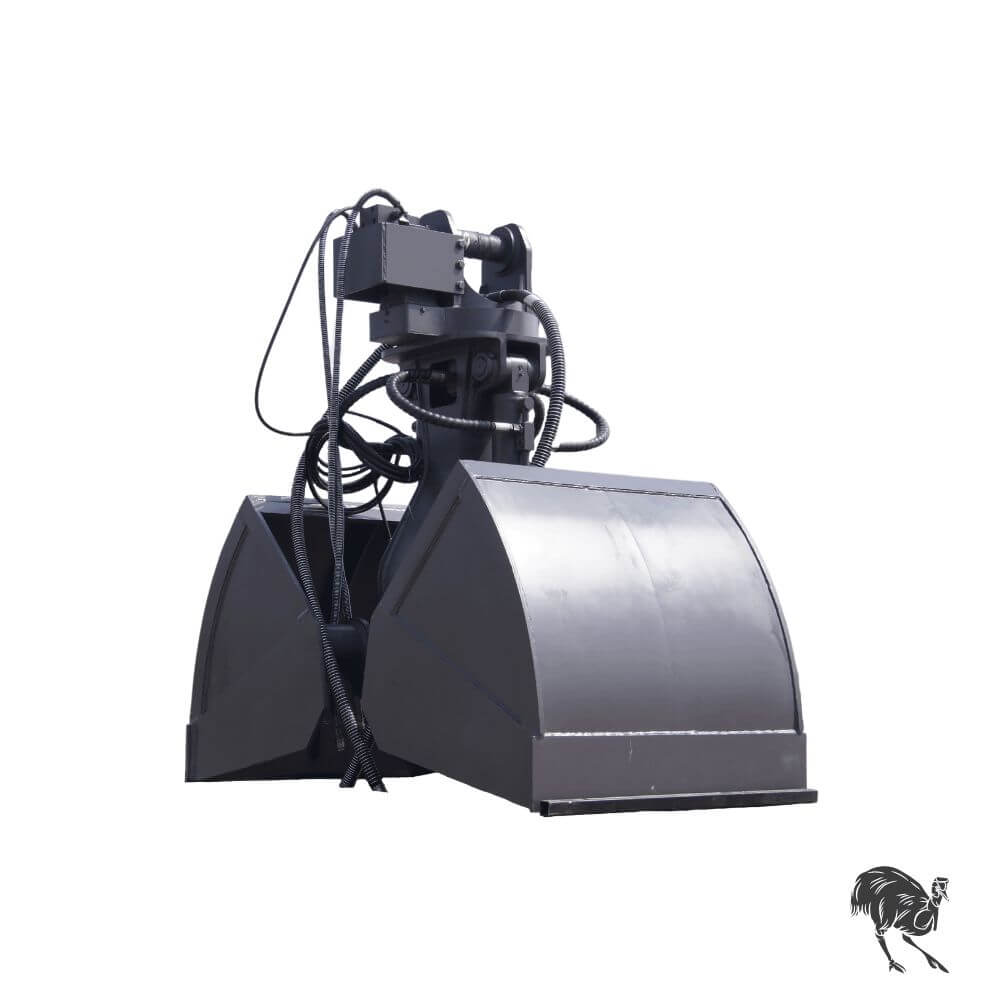

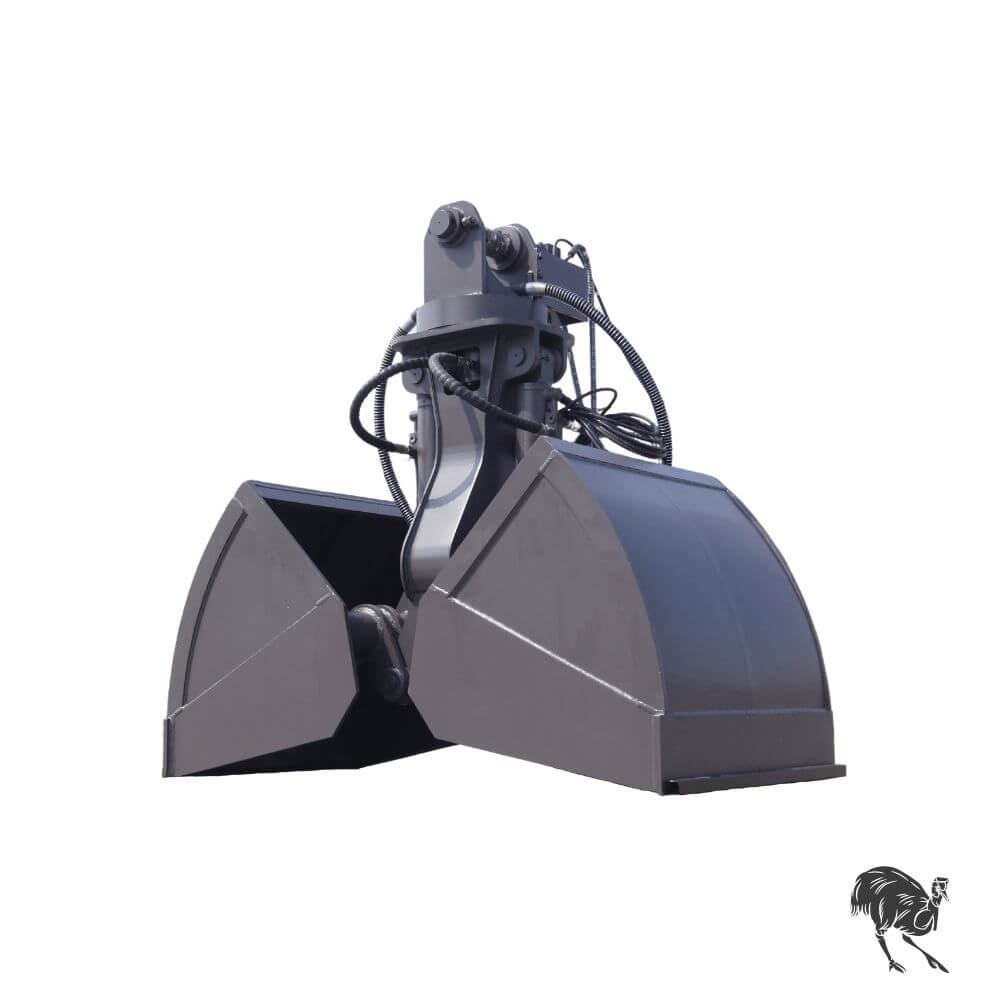

ROTATING CLAMSHELL BUCKET
ROTATING CLAMSHELL BUCKET
available for 8t - 50t
The unique clamshell bucket is ideal for moving, loading and unloading large amounts of mud, sand, coal, gravel and other bulk-loaded materials, it can also be used for road construction, railway laying and other council projects. Fixed models are also available.
The unique clamshell bucket is ideal for moving, loading and unloading large amounts of mud, sand, coal, gravel and other bulk-loaded materials, it can also be used for road construction, railway laying and other council projects. Fixed models are also available.
BULK MATERIAL HANDLING

RE-
CYCLING

MAXIMUM EFFICIENCY
The ability to pick up loads from the bottom of the heap means the Clamshell Bucket can load much more material than your regular bucket, making it one of the most efficient buckets of choice.

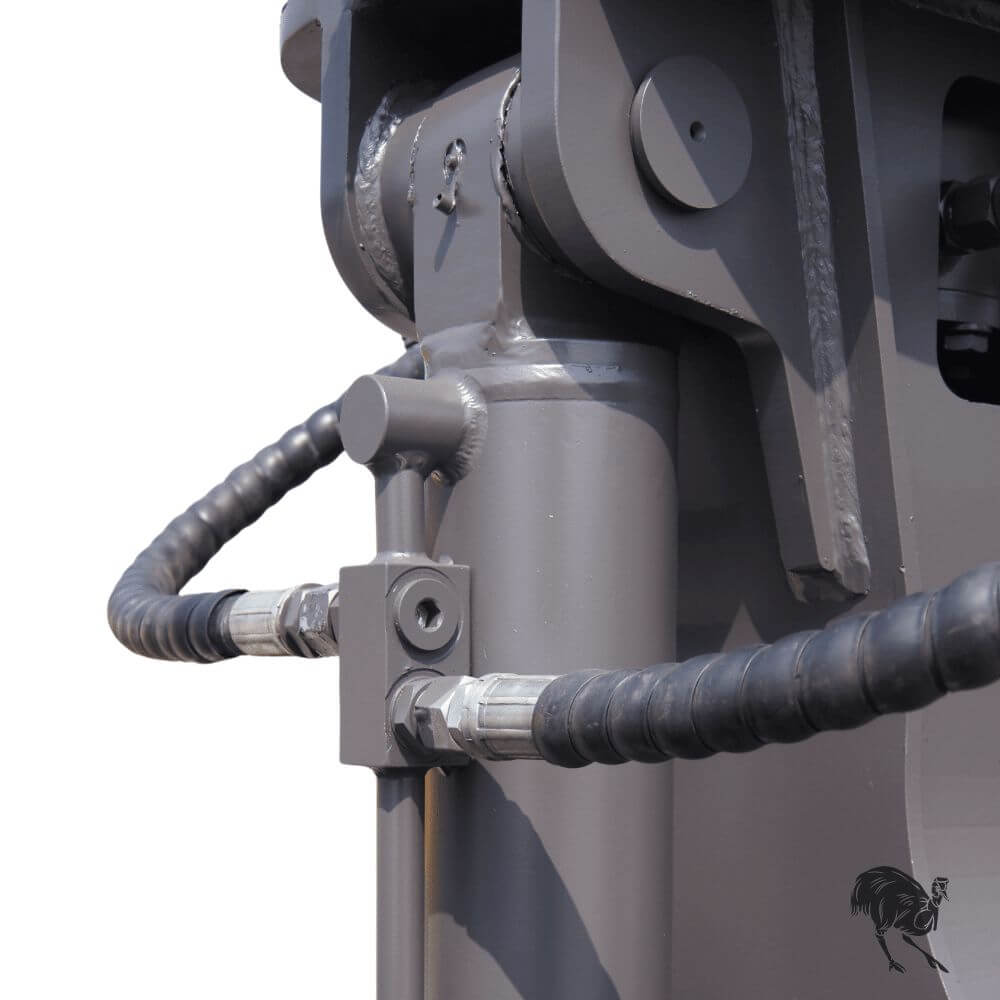

DUAL CYLINDER POWER
We are featuring Dual Cylinders to maximise grip strength to ensure minimal load loss and maximum digging strength.
VERSATILITY

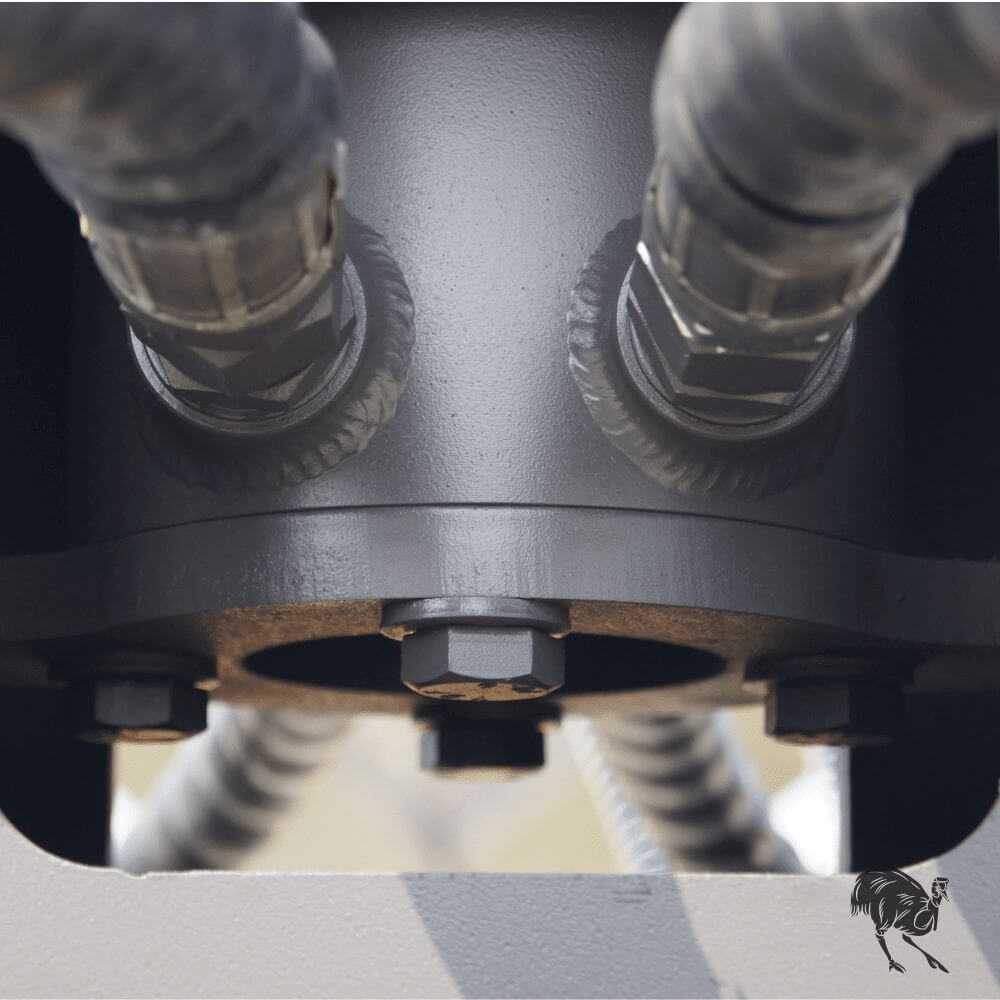

360 DEGREE ROTATION

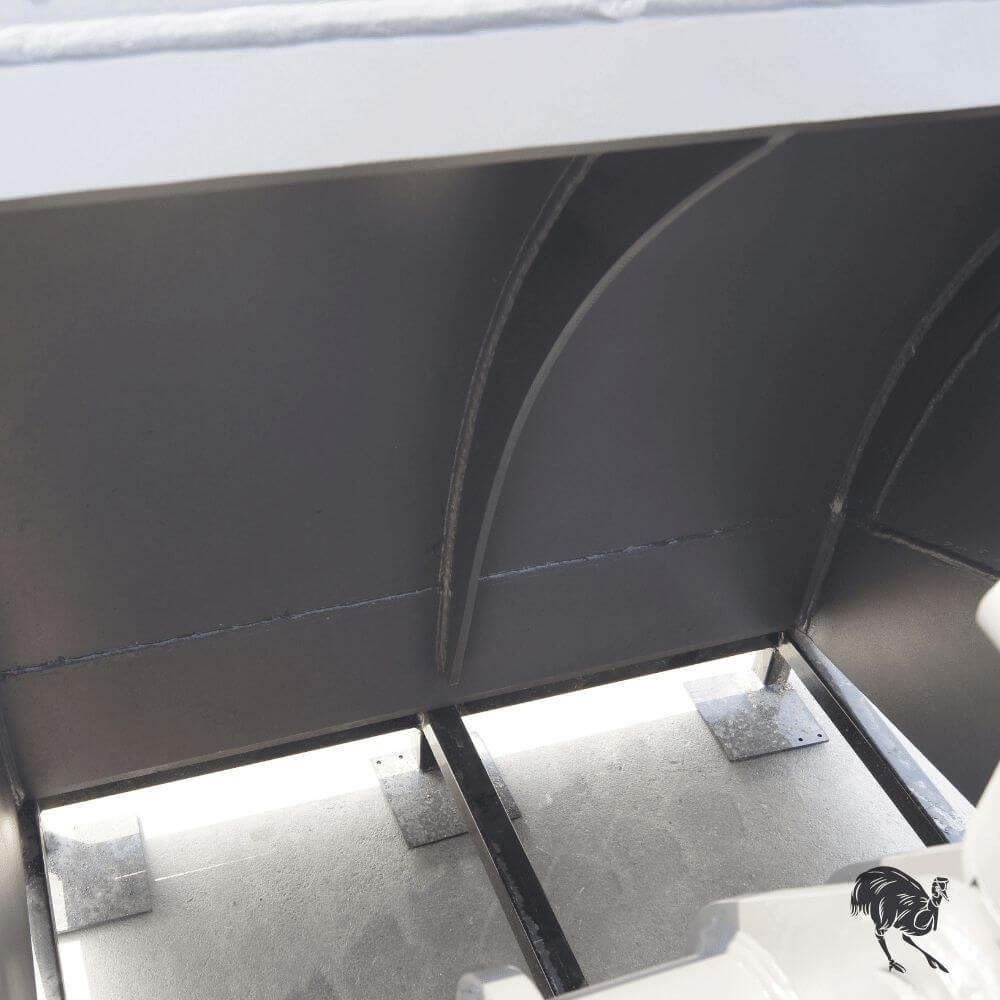

REINFORCED WELDS
FIXED HITCHED AVAILABLE
WARRANTY YOU CAN TRUST
efficiency
The unique clamshell design of the bucket allows for the pickup of materials from the bottom of the heap, enabling it to hold more materials than a regular bucket. This makes it an efficient tool for moving, loading and unloading large amounts of materials such as mud, sand, coal, gravel, and other bulk-loaded materials. This feature of maximum efficiency makes it one of the most efficient buckets of choice.

optimised design
Our Heavy-Duty Clamshell Bucket is optimised for stability, strength and versatility. 360-degree rotation and durable construction make it perfect for heavy-duty digging and excavating tasks in mining, construction and demolition. The optimised design offers improved efficiency, lower maintenance costs and a cost-effective solution for material handling operations.

bulk loading
The main advantage of a Clamshell Bucket is its ability to pick up loads from the bottom of the heap. This feature allows the bucket to load much more material than a regular bucket, making it one of the most efficient tools for bulk loading. The jaws of the bucket open and close via dual hydraulic cylinders, which allows the bucket to scoop up large amounts of materials quickly and easily. The clamshell bucket can also close tightly ensuring minimal material loss or spillage, even when dealing with bulk materials.

Specifications
-
8-15t
-
16-26t
-
16-26t
-
28-35t
-
36-40t
-
40-45t
-
46-50t
-
8-15tNameROTATING CLAMSHELL BUCKET (6-15t)Max Opening1421mmClam Width800mmMotor Flow Rate22-25L/minWorking Flow Rate35-45L/minRotary Speed10-15rpmWeight900khModelABRCSB - 900More Info
-
16-26tNameROTATING CLAMSHELL BUCKET (16-26t)Max Opening2041mmClam Width1000mmMotor Flow Rate70-80L/minWorking Flow Rate120-150L/minRotary Speed10-15rpmWeight1370kgModelABRCSB - 1370More Info
-
16-26tNameROTATING CLAMSHELL BUCKET (16-26t)Max Opening2207mmClam Width1160mmMotor Flow Rate70-80L/minWorking Flow Rate120-150L/minRotary Speed10-15rpmWeight1600kgModelABRCSB - 1600More Info
-
28-35tNameROTATING CLAMSHELL BUCKET (28-35t)Max Opening2207mmClam Width1400mmMotor Flow Rate70-80L/minWorking Flow Rate150-180L/minRotary Speed10-15rpmWeight2330kgModelABRCSB - 2330More Info
-
36-40tNameROTATING CLAMSHELL BUCKET (36-40t)Max Opening2504mmClam Width1740mmMotor Flow Rate70-80L/minWorking Flow Rate150-180L/minRotary Speed10-15rpmWeight2590kgModelABRCSB - 2590More Info
-
40-45tNameROTATING CLAMSHELL BUCKET (40-45t)Max Opening2214mmClam Width1980mmMotor Flow Rate70-80L/minWorking Flow Rate150-180L/minRotary Speed10-15rpmWeight2940kgModelABRCSB - 2940More Info
-
46-50tNameROTATING CLAMSHELL BUCKET (46-50t)Max Opening2617mmClam Width2400mmMotor Flow Rate70-80L/minWorking Flow Rate150-180L/minRotary Speed10-15rpmWeight3100kgModelABRCSB - 3100More Info
ROTATING CLAMSHELL BUCKET
INDUSTRIES
related attachments
