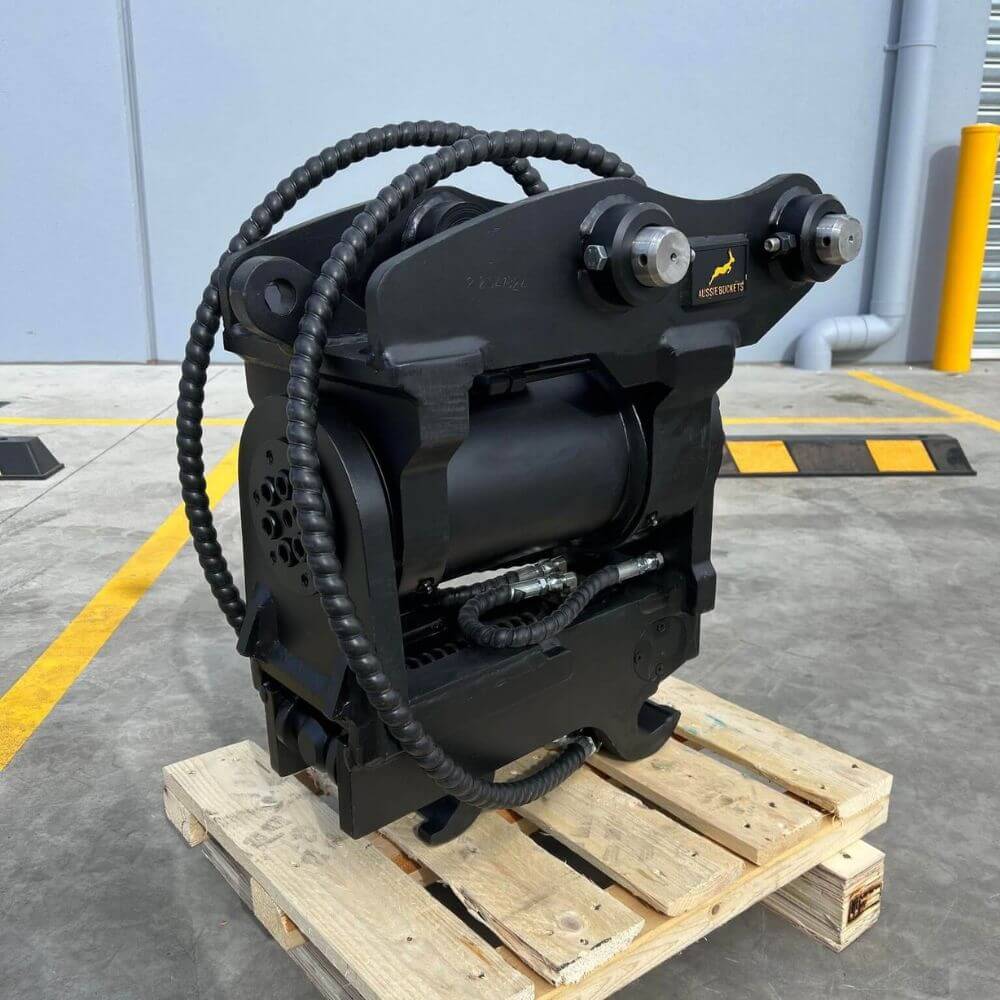

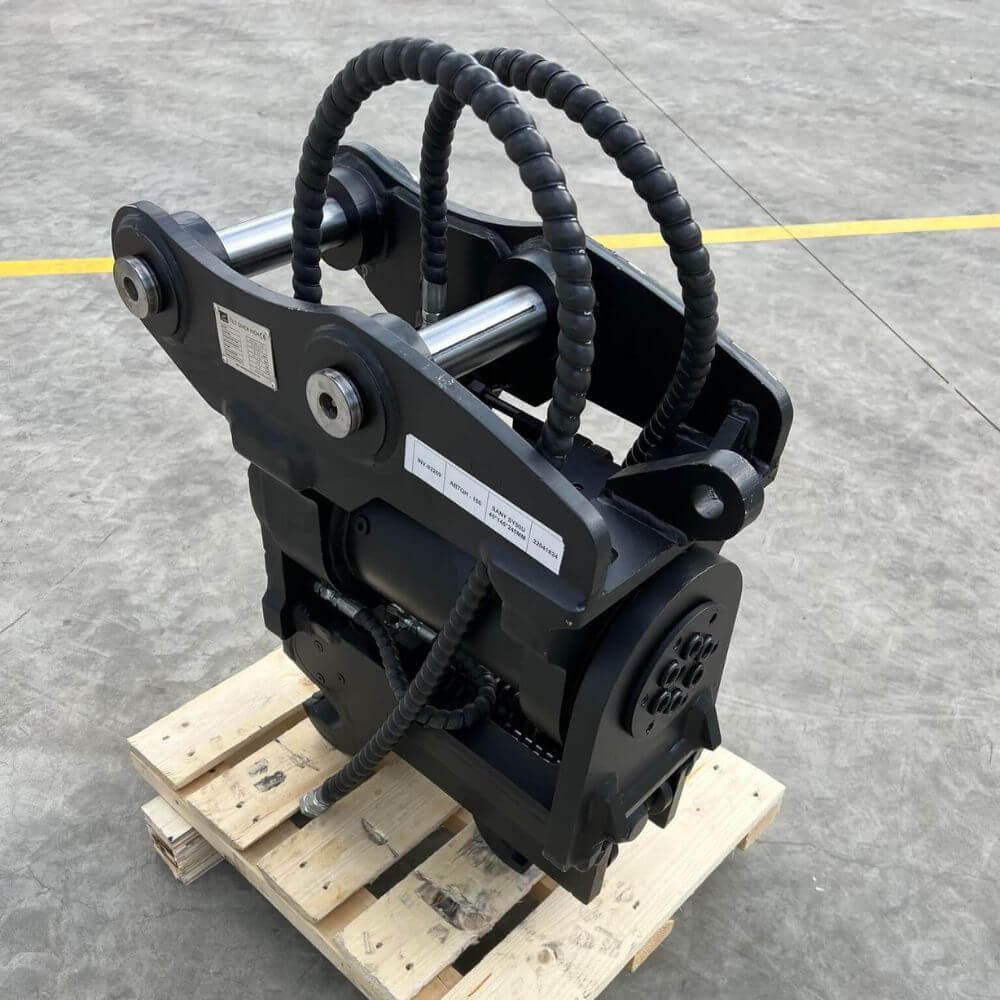

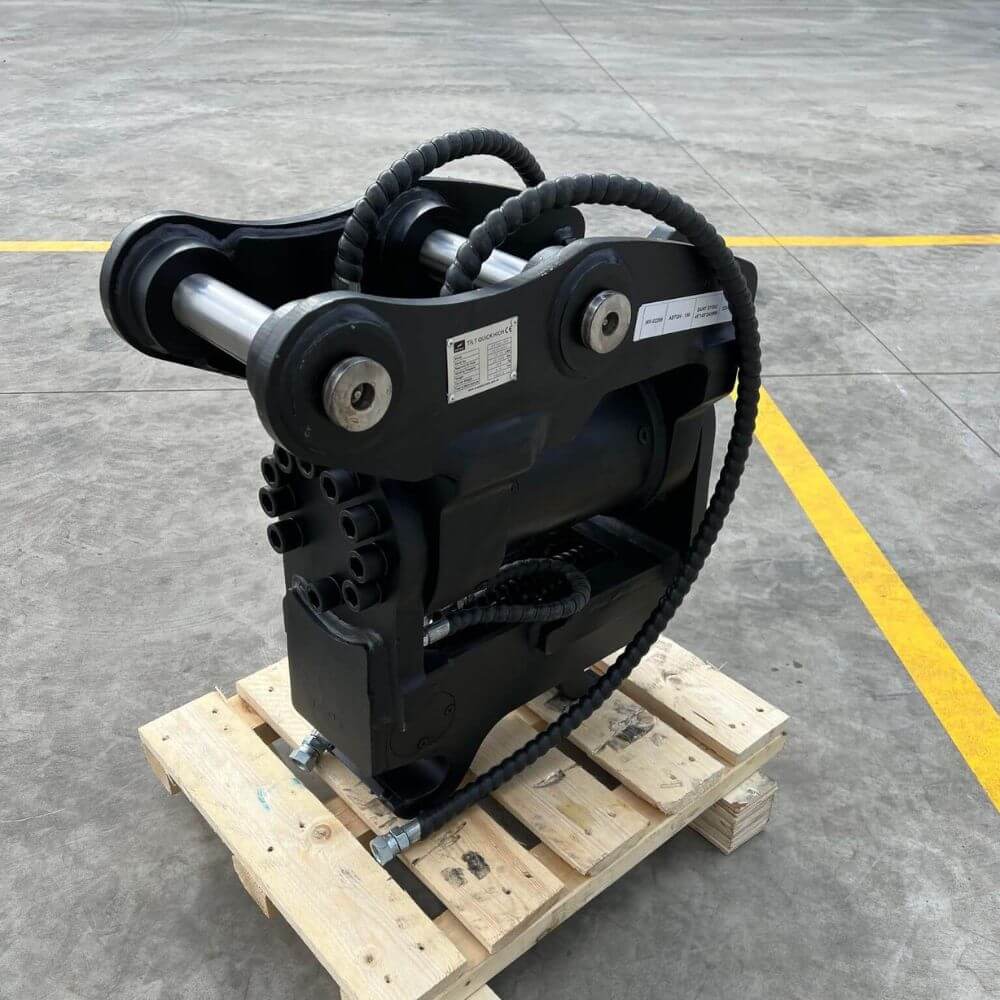

Excavator Attachment Hydraulic Tilting Hitch
Hydraulic Tilting hitch

Hydraulic Tilting hitch

available for 1t - 36t

EFFICIENT
PRECISION
RELIABLE

The tilt hitch can provide your excavator with maximum versatility: facing harsh angles, you eliminate the need to reposition the excavator constantly. Crafted from high-tensile steel, the tilting hitch perfectly balances weight and strength, removing all dead weight from non-load-bearing areas yet maintaining its exceptional strength characteristics.

The tilt hitch can provide your excavator with maximum versatility: facing harsh angles, you eliminate the need to reposition the excavator constantly. Crafted from high-tensile steel, the tilting hitch perfectly balances weight and strength, removing all dead weight from non-load-bearing areas yet maintaining its exceptional strength characteristics.

New call-to-action

New call-to-action

DEMO-
LITION

Excavator Attachment Hydraulic Tilting Hitch

RE-
CYCLING

Excavator Attachment Hydraulic Tilting Hitch

LAND-
SCAPING

Excavator Attachment Hydraulic Tilting Hitch
Excavator Attachment Hydraulic Tilting Hitch Excavator Attachment Hydraulic Tilting Hitch Excavator Attachment Hydraulic Tilting Hitch

available for 1t - 36t

Excavator Attachment Hydraulic Tilting Hitch



New call-to-action



1

Design you can trust

Australian Design standard compliant AS 13031:2023
2

VERSATILITY

1 to 10-tonne tilting hitches feature a full 180 degrees of rocking motion, whilst 10 to 36-tonne utilise a 140-degree range of motion.
3

SERVICEABILITY

Original UK Hallite oil seals and joints, full electronics and a complete set of spare parts ready for installation: pins, pipes, solenoid valve, switch, wire harness, manual, kit, bolts and nuts etc.

4

ROBUST CONSTRUCTION

Manufactured with hardened/heat-treated pins/bearings and larger bushes decrease the overall torsional tension and provides maximum support, extending the coupler's life.

5

HIGH QUALITY HYDRAULICS

The UK Hallite oil seal and motor deliver durability and longevity, even in the toughest applications.

6

PIN QUALITY

It is made of 1045 high-quality carbon steel that has undergone quenching and tempering, ensuring long-term integrity.
7

REINFORCED WELDS

It is made of 1045 high-quality carbon steel that has undergone quenching and tempering, ensuring long-term integrity.

8

WARRANTY YOU CAN TRUST

5 Year warranty and lifetime after-sales support with our entire range!



New call-to-action





EFFICIENCY

Effortlessly change between each attachment, increasing the productivity of your machine and decreasing the cost per job.

Excavator Attachment Hydraulic Tilting Hitch


PRECISION

A valuable and essential tool for any construction project that requires precise control over the angle of the excavator's bucket or other attachments, greatly improving the accuracy and precision for the operator.

Excavator Attachment Hydraulic Tilting Hitch


RELIABILITY

Expertly designed with high-performance component sourcing, superior build and high functionality, for an attachment that's built to last the ages, with lower maintenance than ever before.

Excavator Attachment Hydraulic Tilting Hitch


CLICK FOR QUOTE

Interested in our Hydraulic Tiling Hitch? Hit our 'Quick Quote' button below to complete our form in 30 seconds or less to receive your custom quote today!

New call-to-action

Excavator Attachment Hydraulic Tilting Hitch

Specifications

  • 1-2t
    Name
    HYDRAULIC TILTING HITCH (1-2t)
    Tonnage
    1-2t
    Pin Diameter
    20-30mm
    Weight
    55kg
    Drive Torque
    950Nm
    Tilt Degree
    180°
    Model
    ABTQH - 50
    More Info
    Quick Quote
  • 3-4t
    Name
    HYDRAULIC TILTING HITCH (3-4t)
    Tonnage
    3-4t
    Pin Diameter
    35-40mm
    Weight
    90kg
    Drive Torque
    2800Nm
    Tilt Degree
    180°
    Model
    ABTQH - 90
    More Info
    Quick Quote
  • 4-6t
    Name
    HYDRAULIC TILTING HITCH (4-6t)
    Tonnage
    4-6t
    Pin Diameter
    40-45mm
    Weight
    156kg
    Drive Torque
    4400Nm
    Tilt Degree
    180°
    Model
    ABTQH - 156
    More Info
    Quick Quote
  • 7-9t
    Name
    HYDRAULIC TILTING HITCH (7-9t)
    Tonnage
    7-9t
    Pin Diameter
    50-55mm
    Weight
    195kg
    Drive Torque
    7200Nm
    Tilt Degree
    180°
    Model
    ABTQH - 195
    More Info
    Quick Quote
  • 10-13t
    Name
    HYDRAULIC TILTING HITCH (10-13t)
    Tonnage
    10-13t
    Pin Diameter
    60-65mm
    Weight
    413kg
    Drive Torque
    11000Nm
    Tilt Degree
    140°
    Model
    ABTQH - 413
    More Info
    Quick Quote
  • 14-16t
    Name
    HYDRAULIC TILTING HITCH (14-16t)
    Tonnage
    14-16t
    Pin Diameter
    65mm
    Weight
    445kg
    Drive Torque
    15000Nm
    Tilt Degree
    140°
    Model
    ABTQH - 445
    More Info
    Quick Quote
  • ABTQH (17-27T)
    Name
    HYDRAULIC TILTING HITCH (17-27T)
    Tonnage
    17 - 27T
    Pin Diameter
    70 - 80mm
    Weight
    655KG
    Drive Torque
    19000NM
    Tilt Degree
    140
    Model
    ABTQH - 655
    More Info
    Quick Quote
  • ABTQH (30-35T)
    Name
    HYDRAULIC TILTING HITCH (30-35T)
    Tonnage
    30 - 35T
    Pin Diameter
    90mm - 100mm
    Weight
    SIZE DEP.
    Drive Torque
    46000NM
    Tilt Degree
    140
    Model
    ABTQH - 1000
    More Info
    Quick Quote
